REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Remove:
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the A pillar air distribution duct (see Front footwell air distribution duct: Removal - Refitting) ,(61A, Heating).

LEFT-HAND DRIVE

  • the left-hand trim on the centre panel (see Centre console lower front panel: Removal - Refitting) (59A, Interior equipment),
  • the brake - accelerator pedal assembly (see 37A, Mechanical component controls, Accelerator and brake pedal assembly: Removal - Refitting, page 37A-23) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

CRUISE CONTROL

Mechanical component controls

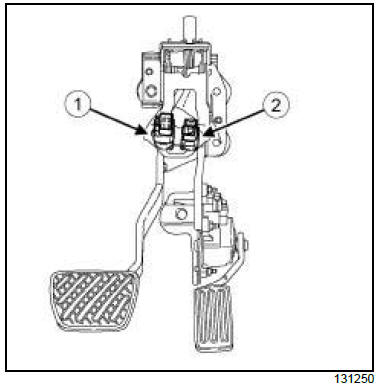

  • Remove:
    • the brake light switch (1) by rotating it a quarter turn anticlockwise,
    • the brake switch (2) by rotating it a quarter turn anticlockwise.

WITHOUT CRUISE CONTROL

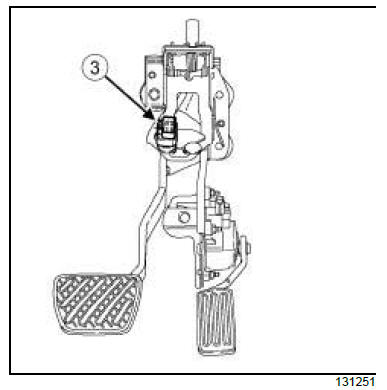

Mechanical component controls

  • Remove the brake light switch (3) by rotating it a quarter turn anticlockwise.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Mechanical component controls

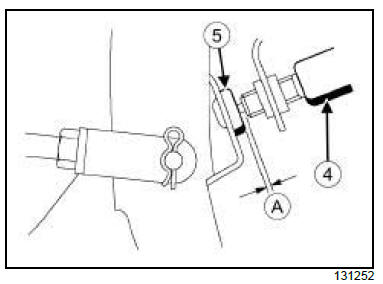

  • Position the brake pedal switches.
  • Press on the brake pedal switches (4) until the end of the piston touches the rubber stop (5) .
  • Rotate the brake pedal switches a quarter of a turn clockwise.
  • Measure the dimension (A) between the rubber stop and the end of the piston.
  • Adjust the dimension (A) between 0.74 mm and 1.96 mm.

II - FINAL OPERATION.

LEFT-HAND DRIVE

  • Refit:
    • the brake - accelerator pedal assembly (see 37A, Mechanical component controls, Accelerator and brake pedal assembly: Removal - Refitting, page 37A-23) ,
    • the left-hand trim on the centre panel (see Centre console lower front panel: Removal - Refitting) (59A, Interior equipment).
  • Connect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Check that the brake light switch is operating correctly:
    • depress the brake pedal to switch on the lights,
    • release the brake pedal to switch off the lights.
  • Refit:
    • the A pillar air distribution duct (see Front footwell air distribution duct: Removal - Refitting) ,(61A, Heating),
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).
