Renault Koleos Service Repair Manual: B-pillar trim: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the front door sill lining (see 71A, Body internal trim, Front door sill lining: Removal - Refitting, page 71A-7) ,
    • the rear door sill lining (see 71A, Body internal trim, Rear door sill lining: Removal - Refitting, page 71A-8) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Body internal trim

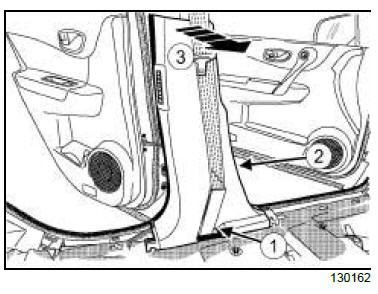

  • Remove the cover (1) .
  • Unclip the B-pillar trim at (2) and (3) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Clip on the B-pillar trim.
  • Refit the cover.

II - FINAL OPERATION.

  • Refit:
    • the rear door sill lining (see 71A, Body internal trim, Rear door sill lining: Removal - Refitting, page 71A-8) ,
    • the front door sill lining (see 71A, Body internal trim, Front door sill lining: Removal - Refitting, page 71A-7) .
