Renault Koleos Service Repair Manual: Fixed glass roof: Removal - Refitting

Non-side opening element mechanisms

REMOVAL

I - REMOVAL PREPARATION OPERATION

IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 minutes after disconnecting the battery.



IMPORTANT Never handle the pyrotechnic systems (pretensioners or airbags) near to a source of heat or naked flame - they may be triggered.
  • Open the mobile panel to the half-open position.
  • Disconnect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Remove:
    • the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim),
    • the roof bar (see 56A, Exterior equipment, Roof bar: Removal - Refitting, page 56A-8) ((56A, Exterior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

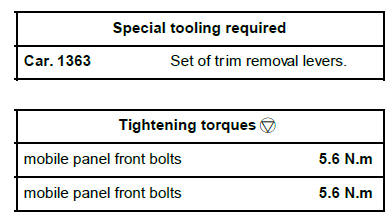

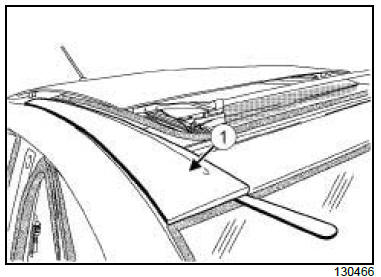

  • Unclip the trim (1) using the tool (Car. 1363).

Non-side opening element mechanisms

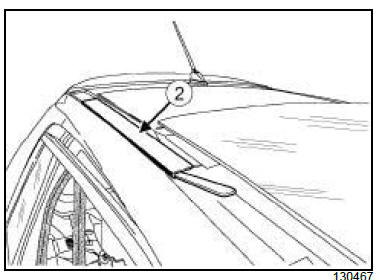

  • Unclip the trim (2) using the tool (Car. 1363).

Non-side opening element mechanisms

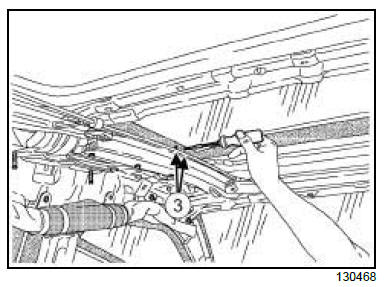

  • Remove the bolts (3) from the front of the mobile panel.

Non-side opening element mechanisms

  • Remove:

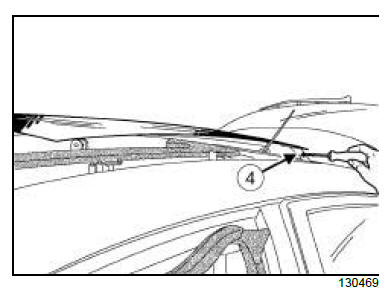

    • the bolt (4) from the rear of the mobile panel,
    • the mobile panel (this operation requires two people).
  • Protect:
    • the roof panel around the fixed glass roof using masking tape,
    • the inside of the vehicle.

Non-side opening element mechanisms

  • Begin cutting the cement bead.

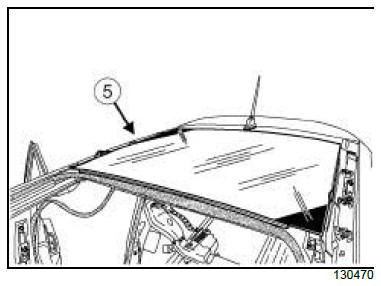

  • Remove the fixed glass roof (5) (this operation requires two people).

REFITTING

I - REMOVAL PREPARATION OPERATION

  • For the preparation and bonding (see Window bonding: Description) (Technical Note 560A, 54A, Windows).

II - REFITTING OPERATION FOR PART CONCERNED

  • Fit the fixed glass roof (this operation requires two people).
Note: When removing and refitting the mobile panel, coat the bolts with a small amount of Frenbloc.

When replacing the mobile panel, replace the bolts with the bolts supplied with the mobile panel.

  • Refit the mobile panel (this operation requires two people).
  • Torque tighten:
    • the mobile panel front bolts (5.6 N.m),
    • the mobile panel front bolts (5.6 N.m).
  • Refit:
    • the trim (2) ,
    • the trim (1) .

III - FINAL OPERATION

  • Refit:
    • the roof bar (see 56A, Exterior equipment, Roof bar: Removal - Refitting, page 56A-8) ((56A, Exterior equipment),
    • the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim).
  • Connect the battery (see Battery: Removal - Refitting) (80A, Battery).
