Renault Koleos Service Repair Manual: Sunroof sunblind: Removal - Refitting

ELECTRICAL SUNROOF + FIXED REAR SECTION

Non-side opening element mechanisms

REMOVAL

I - REMOVAL PREPARATION STAGE

  • Remove:
    • the sunroof deflector (see 52A, Non-side opening element mechanisms, Sunroof deflector: Removal - Refitting, page 52A-13) (Non-side opening element mechanisms),
    • the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim),
    • the sunroof opening motor (see Sunroof opening motor: Removal - Refitting) (87D, Electric windows - Sunroof).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

  • Remove:

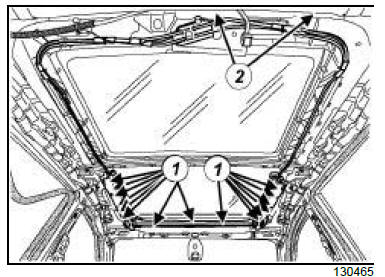

    • the bolts (1) ,
    • the earth bolts (2) ,
    • the sunroof sunblind (this operation requires two people).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the sunroof sunblind (this operation requires two people),
    • the bolts.
  • Torque tighten the sunroof sunblind bolts (3 N.m).

II - FINAL OPERATION

  • Refit:
    • the sunroof opening motor (see Sunroof opening motor: Removal - Refitting) (87D, Electric windows - Sunroof),
    • the headlining (see Headlining: Removal - Refitting) 71A, Body internal trim),
    • the sunroof deflector (see 52A, Non-side opening element mechanisms, Sunroof deflector: Removal - Refitting, page 52A-13) (Non-side opening element mechanisms).
    Sunroof deflector: Removal - Refitting

    Fixed glass roof: Removal - Refitting
