REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the dashboard (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the dashboard cross member (see Dashboard cross member: Removal - Refitting) (42A, Upper front structure),
    • the air distribution unit (see Air distribution unit: Removal - Refitting) ,
    • the central console (see Centre console: Removal - Refitting) (57A, Interior equipment),
    • the gear control unit (see Gear control unit: Removal - Refitting) (37A, Mechanical component controls),
    • the airbag computer (see Airbag computer: Removal - Refitting) (88C, Airbag and pretensioners),
    • the front door sill lining (see Front door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim),
    • the front seat (see Complete front seat: Removal - Refitting) (75A, Front seat frames and runners).

Soundproofing

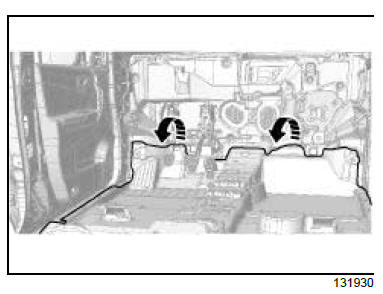

  • Remove the front section of the carpet.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Soundproofing

  • Remove:

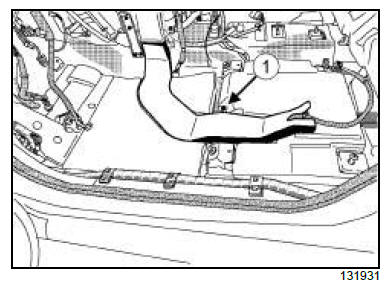

    • the clip (1) ,
    • the left-hand side air distribution duct.

Soundproofing

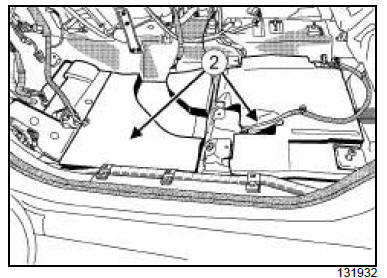

  • Remove the left-hand floor side soundproofing (2) .

Soundproofing

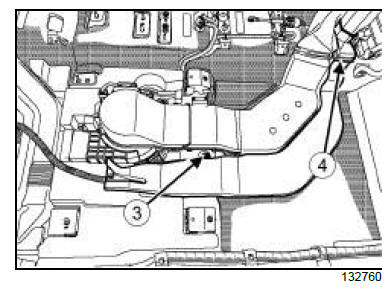

  • Remove the retaining clip (3) from the rear right-hand air distribution duct.
  • Lift the rear right-hand air distribution duct at (4) .
  • Remove:
    • the module of the rear fan assembly,
    • the floor side soundproofing.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the floor side soundproofing,
    • the module of the rear fan assembly,
    • the rear right-hand air distribution duct,
    • the left-hand floor side soundproofing,
    • the clip
    • the left-hand side air distribution duct,
    • the clips (1) .

II - FINAL OPERATION.

  • Refit:
    • the front seat (see Complete front seat: Removal - Refitting) (75A, Front seat frames and runners),
    • the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim),
    • the rear inner sill trim (see Rear door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the front door sill lining (see Front door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the airbag computer (see Airbag computer: Removal - Refitting) (88C, Airbag and pretensioners),
    • the gear control unit (see Gear control unit: Removal - Refitting) (37A, Mechanical component controls),
    • the central console (see Centre console: Removal - Refitting) (57A, Interior equipment),
    • the air distribution unit (see Air distribution unit: Removal - Refitting) ,
    • the dashboard cross member (see Dashboard cross member: Removal - Refitting) (42A, Upper front structure),
    • the dashboard (see Dashboard: Removal - Refitting) (57A, Interior equipment).
