Renault Koleos Service Repair Manual: Bonnet soundproofing: Removal - Refitting

Renault Koleos Service Repair Manual / Sealing and soundproofing / Soundproofing / Bonnet soundproofing: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Soundproofing

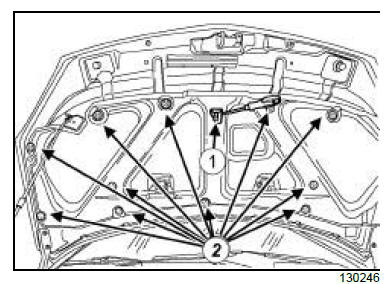

  • Remove:
    • the seal (1) ,
    • the bonnet soundproofing clips (2) ,
    • the bonnet soundproofing.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Replace the bonnet soundproofing clips if necessary.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the bonnet soundproofing,
    • the clips (2) ,
    • the seal (1) .
