This system notifies the driver when they accidentally cross a continuous or broken line.

This function uses a camera attached to the windscreen, behind the rear-view mirror.

This function is a driving aid in the event of the accidental crossing of a continuous or broken line in the road. However, the function is not intended to replace the driver. The function can be disrupted under certain conditions, including:
  • poor visibility (rain, snow, fog, dirty windscreen, glare of the sun, partially obscured road lines, etc.);
  • roads with tight bends;
  • closely following a vehicle in the same lane;
  • worn road markings, difficult to distinguish or spaced very widely apart;
  • narrow roads;
  • ...

In this case, the line visibility indicators remain uncoloured on the instrument panel to indicate that the function will not operate (lines not detected).

Under no circumstances should this function replace the driver's care or responsibility whilst performing manoeuvres.

Lane departure warning

Activation/deactivation

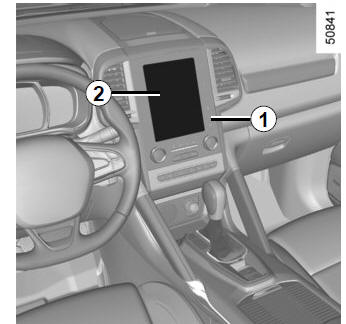

Vehicles fitted with a navigation system From the multifunction screen 2: select "Vehicle", "Driving assistance", "Lane departure warning" then choose "ON" or "OFF".

You can access menu "Driving assistance" directly from button 1 .

Lane departure warning

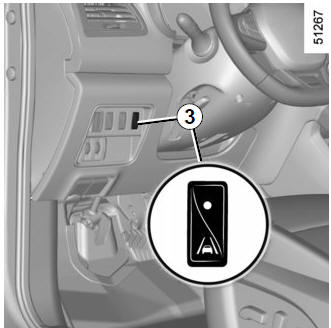

Vehicles not fitted with a navigation system Press the switch 3.

Lane departure warning

Operation

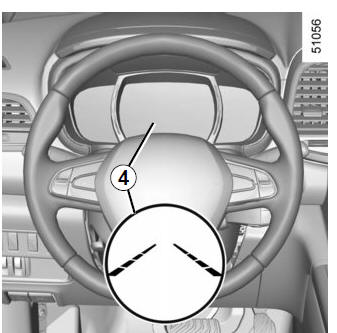

With the function activated, the grey visibility indicators 4 for the left and right lines are displayed on the instrument panel.

The function is set to notify the driver if:

  • the vehicle speed is greater than approximately 45 mph (70 km/h); and
  • lines are detected and the visibility indicators 4 are green.

The function triggers an alert if a line is crossed without the direction indicators being activated. The function alerts the driver through a beep and the indicator the line crossed switches to red on the instrument panel.

Lane departure warning

Conditions for non-activation of alerts

  • Direction indicators activated for less than around 2 seconds prior to departing from the lane;
  • very fast lane departure;
  • driving continuously on a line;
  • on bends, the function allows for slightly cutting the bend;
  • hazard warning lights activated;
  • ...

Adjustment

Vehicles fitted with a navigation system From the multifunction screen 2, select "Vehicle", "Driving assistance", "Lane departure warning settings".

  • Volume: adjust the alert volume to one of five levels;
  • sensitivity: adjust the sensitivity level for line detection. To do this select:
  • "Low" line detected upon crossing;
  • "Average" line detected on approach;
  • "high" line detected nearby.

Vehicles not fitted with a navigation system

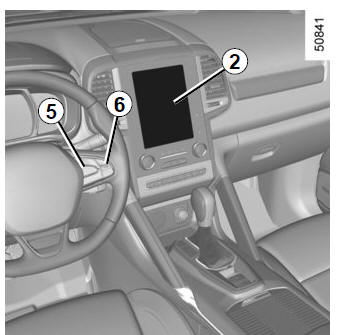

  • With the vehicle at a standstill, press and hold the switch 5 OK to access the settings menu;
  • repeatedly press the control 6 up or down until you reach the "Driving assistance" menu. Press the switch 5 OK;
  • repeatedly press control 6 up or down until you reach the "Lane departure warning settings" menu, then press the switch 5 OK.
  • Volume: adjust the alert volume to one of three levels;
  • sensitivity: adjust the sensitivity level for line detection. To do this select:
    • "Low" line detected upon crossing;
    • "Average" line detected on approach;
    • "high" line detected nearby.

Operating faults

In the event of a malfunction, a message "Lane departure warning check" is displayed on the instrument panel, and the visibility indicators for the left and right lines disappear from the instrument panel.

Consult an approved dealer.

    System B

    Fatigue detection warning
