Renault Koleos Service Repair Manual: Air mixing cable: Removal - Refitting

Renault Koleos Service Repair Manual / Air conditioning / Heating / Air mixing cable: Removal - Refitting

LEFT-HAND DRIVE

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the bottom cover (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the dashboard lower cover (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the A pillar air distribution duct (see Front air distribution duct: Removal - Refitting) ,
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the front panel side trim (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

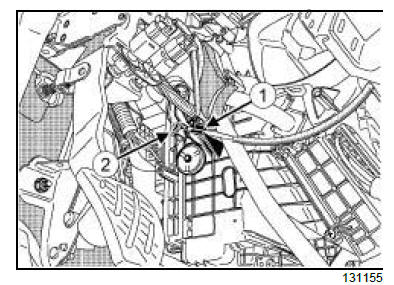

  • Unclip the cable sleeve stop (1) from the distribution unit.
  • Remove:
    • the mixer flap seal (2) ,
    • the air mixer flap control cable on the air distribution unit.
Note: Note the route of the air mixing control cable.
  • Remove the control panel (see 61A, Heating, Control panel: Removal - Refitting, page 61A-48) .

Heating

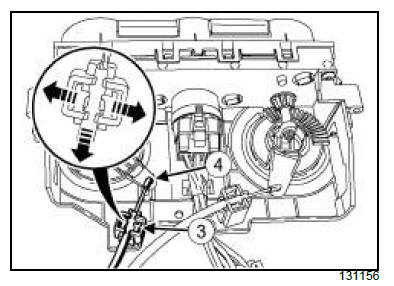

  • Unclip the sheath stop (3) .
  • Remove the seal (4) .
  • Remove the air mixing control cable on the control panel.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Heating

  • Refit the air mixing control cable to the control panel.

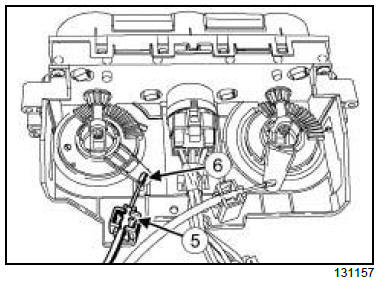

  • Refit the seal (6) .
  • Clip the sleeve stop at (5) .
  • Refit the control panel (see 61A, Heating, Control panel: Removal - Refitting, page 61A-48) .

Heating

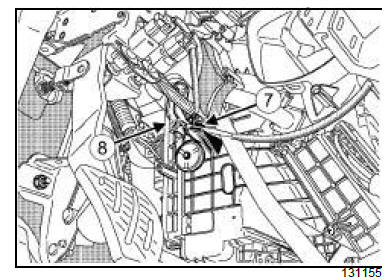

  • Refit:
    • the air mixing control cable to the air distribution unit,
    • the seal (8) to the air mixer flap.
  • Clip the sleeve stop (7) onto the distribution unit.

II - FINAL OPERATION.

  • Remove:
    • the front panel side trim (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the A pillar air distribution duct (see Front air distribution duct: Removal - Refitting) ,
    • the dashboard lower cover (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the bottom cover (see Dashboard: Removal - Refitting) (57A, Interior equipment).

RIGHT-HAND DRIVE

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the glovebox (see Glovebox: Removal - Refitting) ( 57A, Interior equipment),
    • the right-hand lower cover on the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the A-pillar air distribution duct (see Front air distribution duct: Removal - Refitting) ,
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the right-hand side trim of the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

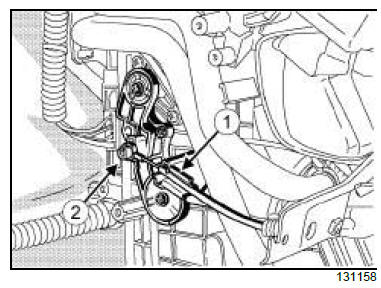

  • Unclip the cable sleeve stop (1) from the distribution unit.
  • Remove:
    • the mixing flap seal (2) ,
    • the air mixing control cable on the air distribution unit.
Note: Note the route of the air mixing control cable.
  • Remove the control panel (see 61A, Heating, Control panel: Removal - Refitting, page 61A-48) .

Heating

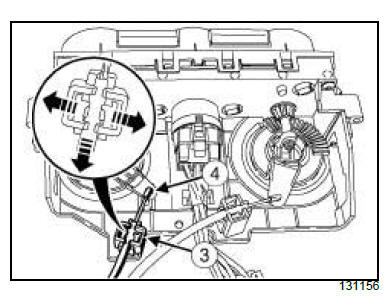

  • Unclip the sheath stop (3) .
  • Remove the seal (4) .
  • Remove the air mixing control cable on the control panel.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Heating

  • Refit the air mixing control cable to the control panel.

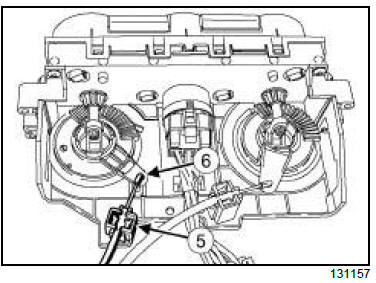

  • Refit the seal (6) .
  • Clip the sleeve stop at (5) .
  • Refit the control panel (see 61A, Heating, Control panel: Removal - Refitting, page 61A-48) .

Heating

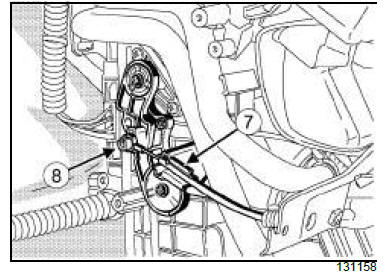

  • Refit:
    • the air mixing control cable to the air distribution unit,
    • the seal (8) to the air mixing flap.
  • Clip the sleeve stop (7) onto the distribution unit.

II - FINAL OPERATION

  • Refit:
    • the right-hand side trim on the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the A-pillar air distribution duct (see Front air distribution duct: Removal - Refitting) ,
    • the right-hand lower cover on the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the glovebox (see Glovebox: Removal - Refitting) (57A, Interior equipment).
