Renault Koleos Service Repair Manual: Air distribution cable: Removal - Refitting

Renault Koleos Service Repair Manual / Air conditioning / Heating / Air distribution cable: Removal - Refitting

LEFT-HAND DRIVE

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the driver's side A-pillar air distribution duct (see Front air distribution duct: Removal - Refitting) ,
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the left-hand side trim on the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

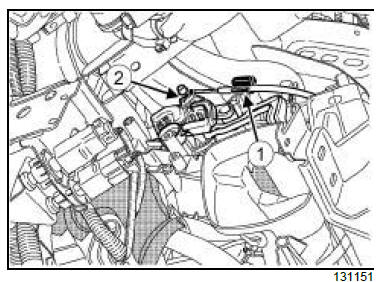

  • Unclip the air distribution unit cable sleeve stop (1) .
  • Remove:
    • the air distribution flap seal (2) ,
    • the air distribution control cable on the air distribution unit.
Note: Note the route of the air distribution control cable.
  • Remove the control panel (see 61A, Heating, Control panel: Removal - Refitting, page 61A-48) .

Heating

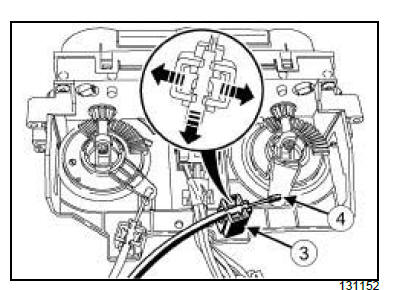

  • Unclip the sleeve stop at (3) .
  • Remove the seal (4) .
  • Remove the air distribution control cable on the control panel.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the air distribution control cable on the control panel.
  • Refit the seal (4) .
  • Clip the sleeve stop at (3) .
  • Refit:
    • the control panel (see 61A, Heating, Control panel: Removal - Refitting, page 61A-48) ,
    • the air distribution control cable to the air distribution unit,
    • the seal to the air distribution flap.
  • Clip the sleeve stop onto the distribution unit.

II - FINAL OPERATION.

  • Refit:
    • the left-hand side trim on the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the driver's side A-pillar air distribution duct (see Front air distribution duct: Removal - Refitting) ,
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

RIGHT-HAND DRIVE

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the glovebox (see Glovebox: Removal - Refitting) ( 57A, Interior equipment),
    • the A-pillar air distribution duct (see Front air distribution duct: Removal - Refitting) ,
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the right-hand side trim on the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

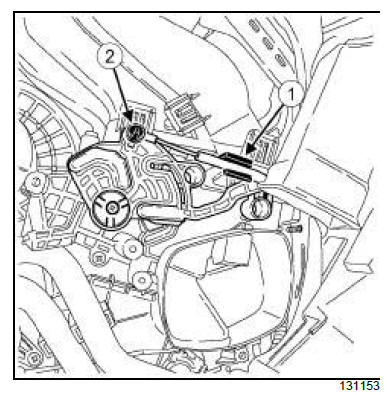

  • Unclip the cable sleeve stop (1) from the distribution unit.
  • Remove:
    • the air distribution flap seal (2) ,
    • the air distribution control cable on the air distribution unit.

Note: Take note of the routing of the air distribution control cable.

  • Remove the control panel (see 61A, Heating, Control panel: Removal - Refitting, page 61A-48) .

Heating

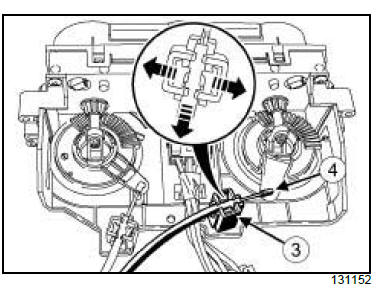

  • Unclip the sheath stop (3) .
  • Remove the seal (4) .
  • Remove the air distribution control cable on the control panel.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Heating

  • Refit the air distribution control cable on the control panel.

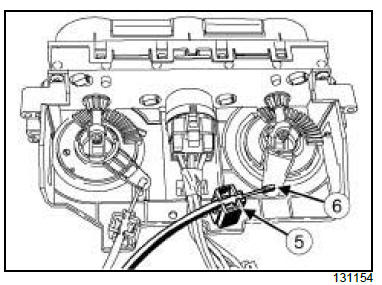

  • Refit the seal (6) .
  • Clip the sleeve stop at (5) .
  • Refit the control panel (see 61A, Heating, Control panel: Removal - Refitting, page 61A-48) .

Heating

  • Refit:
    • the air distribution control cable on the air distribution unit,

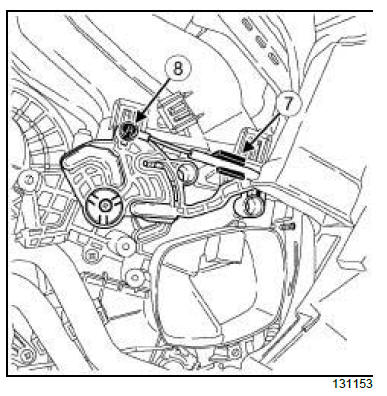

    • the seal (8) to the air distribution flap.
  • Clip the sleeve stop (7) onto the distribution unit.

II - FINAL OPERATION

  • Refit:
    • the right-hand side trim on the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the radio (see Car radio: Removal - Refitting) (86A, Radio),
    • the CD changer (see CD changer: Removal - Refitting) (86A, Radio),
    • the A-pillar air distribution duct (see Front air distribution duct: Removal - Refitting) ,
    • the glovebox (see Glovebox: Removal - Refitting) (57A, Interior equipment).
