Renault Koleos Service Repair Manual: Bonnet release cable: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the door sill lining (see Front door sill lining: Removal - Refitting) (71A, Body internal trim),
    • the cab floor lining (see Cab floor lining: Removal - Refitting) (71A, Body internal trim),
    • the front wheel arch liner partially (see 55A, Exterior protection, Front wheel arch liner: Removal - Refitting, page 55A-10) (55A, Exterior protection),
    • the front bumper (see 55A, Exterior protection, Front bumper: Removal - Refitting, page 55A-1) (55A, Exterior protection).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

  • Remove:

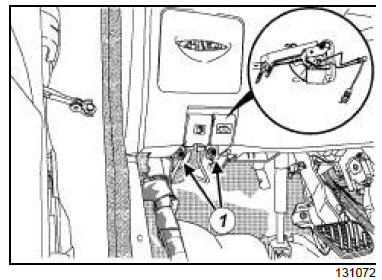

    • the bolts (1) ,
    • the bonnet release handle.

Non-side opening element mechanisms

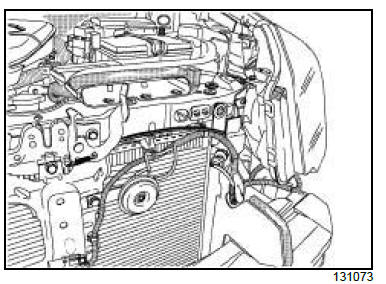

  • Note the routing of the bonnet release cable.
  • Remove the bulkhead cable routing blanking piece.

Non-side opening element mechanisms

  • Remove:

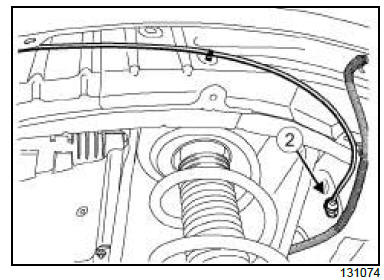

    • the bonnet catch (see 52A, Non-side opening element mechanisms, Bonnet lock: Removal - Refitting, page 52A-2) (52A, Non-side opening element mechanisms),
    • the bonnet catch cable,
    • the bonnet release cable.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the release cable on the bonnet lock,
    • the bonnet catch (see 52A, Non-side opening element mechanisms, Bonnet lock: Removal - Refitting, page 52A-2) (52A, Non-side opening element mechanisms),
    • the bonnet release cable,
    • the cable routing blanking piece on the bulkhead,
    • the bonnet release handle,
    • the bolts of the bonnet release handle.

II - FINAL OPERATION.

  • Refit:
    • the front bumper (see 55A, Exterior protection, Front bumper: Removal - Refitting, page 55A-1) (55A, Exterior protection),
    • the front wheel arch liner (see 55A, Exterior protection, Front wheel arch liner: Removal - Refitting, page 55A-10) (55A, Exterior protection),
    • the cab floor lining (see Cab floor lining: Removal - Refitting) (71A, Body internal trim),
    • the door sill lining (see Front door sill lining: Removal - Refitting) (71A, Body internal trim).
