Renault Koleos Service Repair Manual: Tailgate lock: Removal - Refitting

Renault Koleos Service Repair Manual / Mechanisms and accessories / Non-side opening element mechanisms / Tailgate lock: Removal - Refitting

Non-side opening element mechanisms

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the tailgate trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening element mechanisms

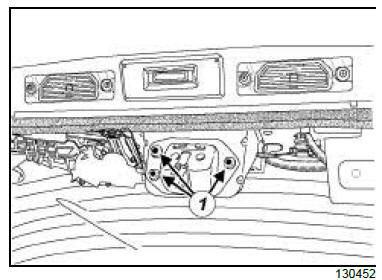

  • Remove the bolts (1) .
    • Disconnect the power supply connector.
    • Remove the tailgate lock.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the supply connector.
  • Refit:
    • the tailgate lock,
    • the bolts (1) .
  • Torque tighten the tailgate lock bolts (22 N.m).

II - FINAL OPERATION.

  • Refit the tailgate trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).
