Rear axle components

The pipes have a rigid and a flexible section.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (MR 388, 02A, Lifting equipment).
  • Remove the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
WARNING Prepare for the flow of fluid, and protect the surrounding components.

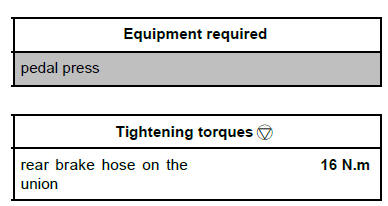

  • Fit the pedal press to the brake pedal to limit the amount of brake fluid running out.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Rear axle components

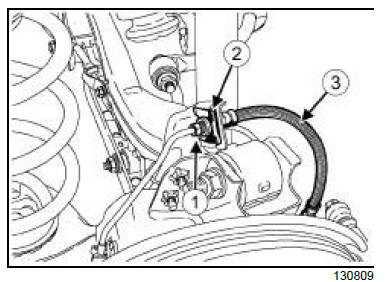

  • Undo the rear brake hose at the pipe connection (1) .
  • Remove the rear brake hose clip (2) .
  • Disconnect the rear brake hose (3) .

Rear axle components

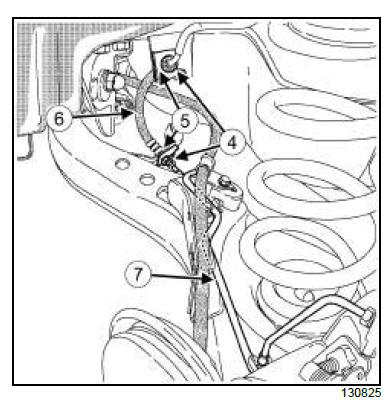

  • Undo the rear brake hose at the pipe connection (4) .
  • Remove:
    • the clips (5) from the rear brake hose (6) ,
    • the rear brake hose.
  • Detach the rigid brake pipe (7) from the rear stub axle carrier.
  • Remove the rigid brake pipe.

REFITTING

I - REFITTING PREPARATION OPERATION

WARNING To avoid damaging the wheel speed sensor cable:
  • Do not tension the cable,
  • Do not twist the cable,
  • Check that there is no contact with the surrounding components,
  • Do not use tools that may damage the cable.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the rigid brake pipe in its initial position.
    • the rear brake hose (6) ,
    • the rear brake hose on the union (4) ,
    • the clips (5) on the rear brake hose.
  • Torque tighten the rear brake hose on the union (16 N.m).
  • Refit:
    • the rear brake hose (3) ,
    • the rear brake hose on the union (1) ,
    • the clip (2) on the rear brake hose.

III - FINAL OPERATION.

  • Remove the pedal press.
  • Bleed the brake circuit (see 30A, General information, Braking circuit: Bleed, page 30A-4) .
  • Refit the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
