Renault Koleos Service Repair Manual: Opening element: Removal - Refitting

Non-side opening elements

I - REMOVAL WITHOUT HINGES

1 - REMOVAL PREPARATION OPERATION

  • Remove the boot chute gas strut.

2 - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening elements

  • Remove:

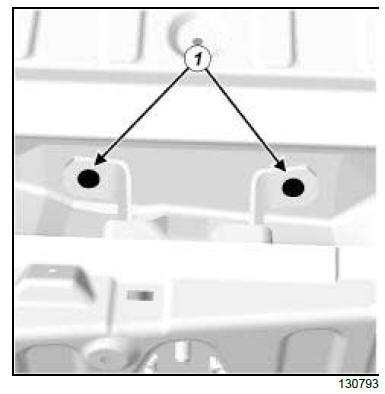

    • the boot chute hinge bolts (1) ,
    • the boot chute.

II - REFITTING WITHOUT HINGES

1 - OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the boot chute,
    • the boot chute hinge bolts (1) .

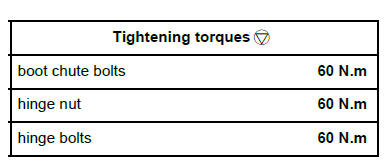

  • Torque tighten the boot chute bolts (60 N.m) (1) .

2 - FINAL OPERATION

  • Refit the boot chute gas strut.

III - REMOVAL WITH HINGES

1 - REMOVAL PREPARATION OPERATION

  • Remove:
    • the rear bumper (see Rear bumper: Removal - Refitting) (55A, Exterior protection),
    • the boot chute gas strut.

2 - OPERATION FOR REMOVAL OF PART CONCERNED

Non-side opening elements

  • Remove:

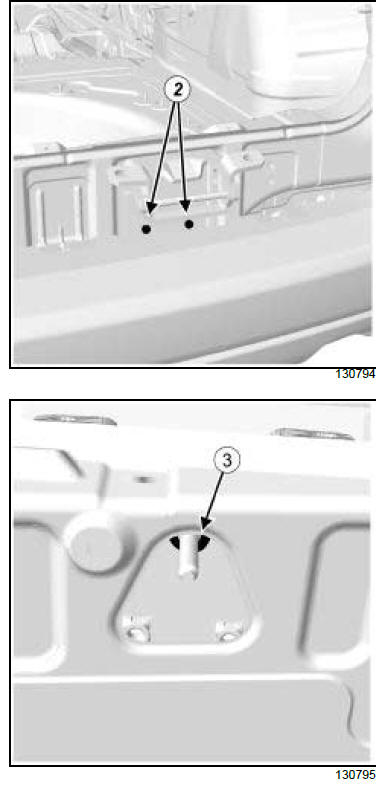

    • the boot chute hinge bolts (2) ,
    • the boot chute hinge nut (3) ,
    • the boot chute.

IV - REFITTING WITH HINGES

1 - OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the boot chute,
    • the boot chute hinge nut (3) ,
    • the boot chute hinge bolts (2) .
  • Torque tighten:
    • the hinge nut (60 N.m) (3) ,
    • the hinge bolts (60 N.m) (2) .

2 - FINAL OPERATION

  • Refit:
    • the boot chute gas strut,
    • the rear bumper (see Rear bumper: Removal - Refitting) (55A, Exterior protection).
