Renault Koleos Service Repair Manual: Opening element: Adjusting

I - ADJUSTMENT VALUE

  • For all information about boot chute adjustment values (see Vehicle clearances: Adjustment values) (MR 389, 01C, Vehicle bodywork specifications).

II - ADJUSTMENT

  • There are two options for adjusting the boot chute:
    • using the boot chute bolts,
    • using the boot chute hinge nuts: supplementary step for the removal of the rear bumper.

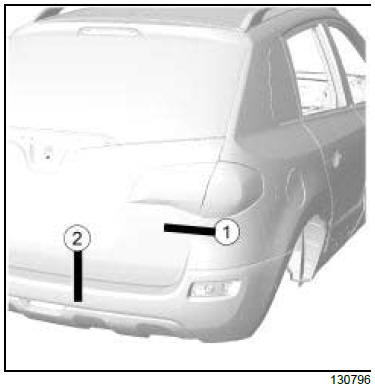

Non-side opening elements

  • Observe the adjustment sequence.

Non-side opening elements

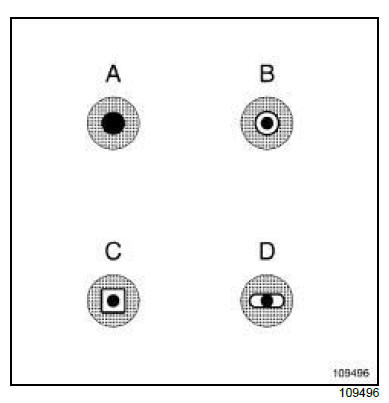

  • Symbols A, B, C and D show the adjustment options.

    The black dot in the centre represents the body of the bolt.

    The grey section represents the component to be adjusted.

    The white section represents the adjustment area.

III - ADJUSTMENT USING THE BOOT CHUTE BOLTS

Non-side opening elements

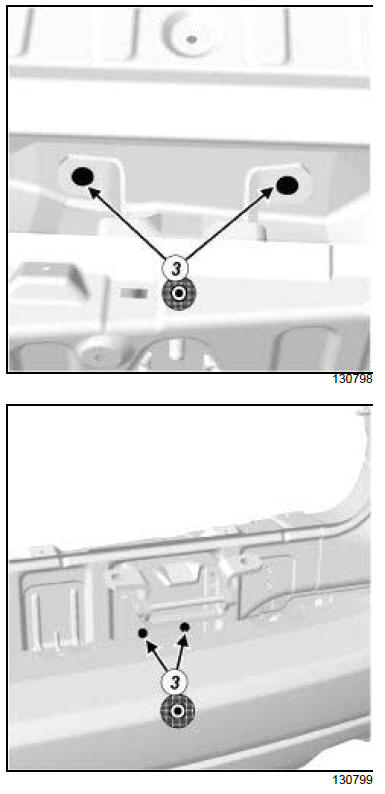

  • Loosen the boot chute bolts (3) on both sides of the vehicle.
  • Adjust the flush fitting of the boot chute.

IV - ADJUSTMENT USING THE HINGE NUTS

Non-side opening elements

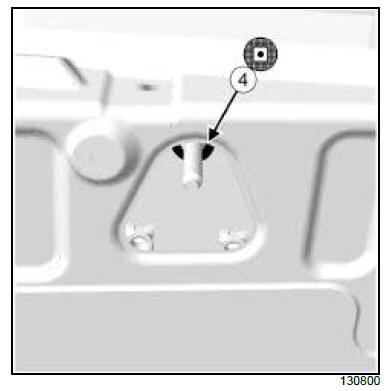

  • Loosen the hinge nut (4) on both sides of the vehicle.
  • Adjust the flush fitting of the boot chute.
  • Refit the rear bumper.
