REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove:
    • the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) ,
    • the rear brake calliper without disconnecting the brake hose (see 33A, Rear axle components, Rear brake calliper: Removal - Refitting, page 33A-5) .
  • Suspend the rear brake calliper.
  • Remove the rear brake pads (see 33A, Rear axle components, Rear brake pads: Removal - Refitting, page 33A-1) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Rear axle components

  • Remove:

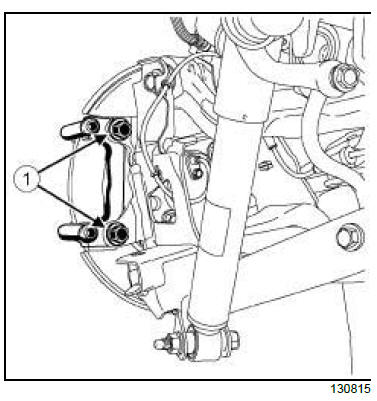

    • the rear brake calliper mounting bolts (1) ,
    • the rear brake calliper mounting.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace the brake calliper guide pin bolts.
  • Clean using a wire brush and BRAKE CLEANER (see Vehicle: Parts and consumables for the repair) (04B, Consumables - Products):
    • the calliper brackets,
    • the callipers.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the calliper mounting,
    • the calliper mounting bolts.

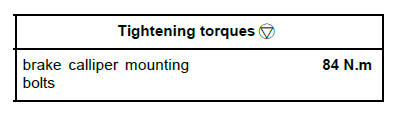

  • Torque tighten the brake calliper mounting bolts (84 N.m).

III - FINAL OPERATION.

  • Refit:
    • the rear brake pads (see 33A, Rear axle components, Rear brake pads: Removal - Refitting, page 33A-1) .
    • the rear brake calliper (see 33A, Rear axle components, Rear brake calliper: Removal - Refitting, page 33A-5) ,
    • the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
IMPORTANT To avoid any accident, bring the pistons, brake pads and brake discs into contact by depressing the brake pad several times.
