Renault Koleos Service Repair Manual: Rear brake calliper: Removal - Refitting

Renault Koleos Service Repair Manual / Chassis / Rear axle components / Rear brake calliper: Removal - Refitting

Rear axle components

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
WARNING Prepare for the flow of fluid, and protect the surrounding components.
  • Position a pedal press on the brake pedal to limit the outflow of brake fluid.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Rear axle components

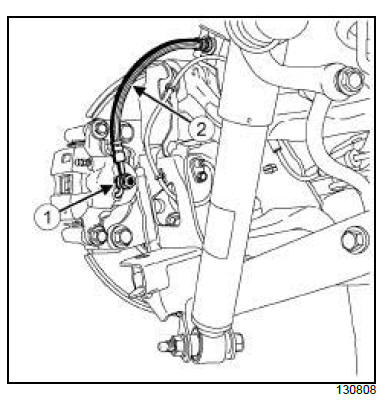

  • Undo the brake hose on the calliper at (1) .
  • Disconnect the rear brake hose (2) from the rear brake calliper.

Rear axle components

  • Remove:

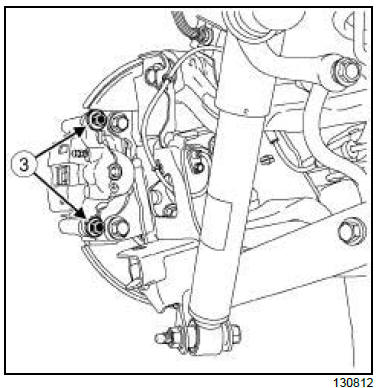

    • the rear brake calliper guide pin bolts (3) ,
    • the rear brake calliper from the mounting,
    • the rear brake pads.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace:
    • the calliper guide pin bolts,
    • the copper washers on the brake hose on the calliper.
  • Clean using a wire brush and BRAKE CLEANER (see Vehicle: Parts and consumables for the repair) (04B, Consumables - Products):
    • the calliper supports,
    • the callipers.

Rear axle components

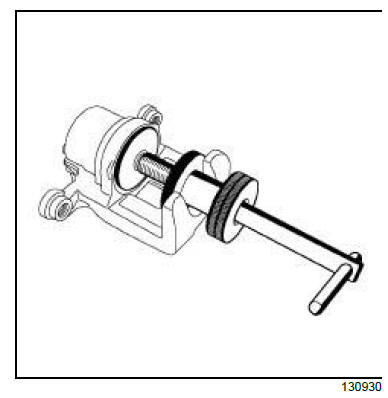

  • Push the piston to the bottom of its housing using the (Fre. 1190-01).

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the rear brake pads,
    • the rear brake calliper,
    • the new guide pin bolts,
    • the brake hose to the calliper, with new copper washers.

Rear axle components

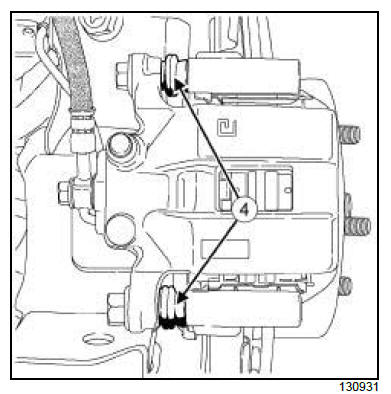

  • Ensure that the guide pin bolt rubber boots (4) are correctly positioned.

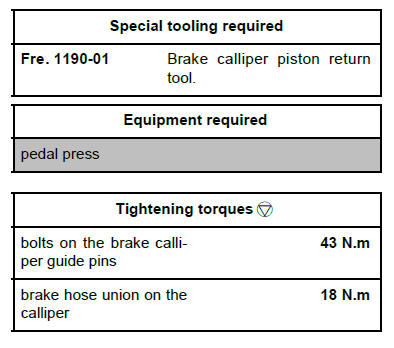

  • Tighten to torque:
    • the bolts on the brake calliper guide pins (43 N.m),
    • the brake hose union on the calliper (18 N.m).

III - FINAL OPERATION.

  • Remove the pedal press from the brake pedal.
  • Bleed the brake circuit (see 30A, General information, Braking circuit: Bleed, page 30A-4) .
  • Refit the rear wheels (see 35A, Wheels and tyres, Wheel: Removal - Refitting, page 35A-1) .
  • Check the brake fluid level.
IMPORTANT To avoid any accident, bring the pistons, brake pads and brake discs into contact by depressing the brake pad several times.
    Rear brake hose: Removal - Refitting

    Rear brake calliper mounting: Removal - Refitting
