Renault Koleos Service Repair Manual: Front left-hand driveshaft gaiter, gearbox side: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Driveshafts / Front left-hand driveshaft gaiter, gearbox side: Removal - Refitting

Driveshafts

Driveshafts

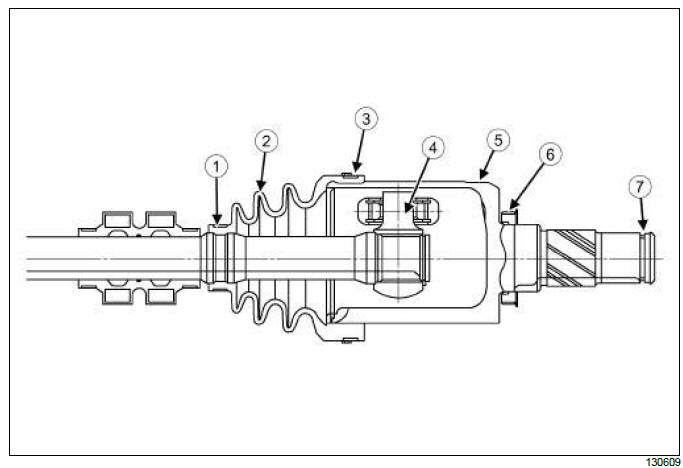

  1. Small clip
  2. Driveshaft gaiter
  3. Big clip
  4. Spider
  5. Driveshaft yoke sleeve
  6. Deflector
  7. Lock ring

REMOVAL

I - OPERATION FOR REMOVAL OF PART CONCERNED

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove:
    • the engine undertray bolts,
    • the engine undertray.

6-SPEED MANUAL GEARBOX

  • Drain the manual gearbox (see 21A, Manual gearbox, Manual gearbox oils: Draining - Filling, page 21A-5) .

FK0 or FK8, and 6-SPEED AUTOMATIC GEARBOX

  • Drain the automatic gearbox oil (see 23A, Automatic gearbox, Automatic gearbox oil: Draining - Filling, page 23A-11) .



  • Remove:
    • the front left-hand wheel (see Wheel: Removal - Refitting) (35A, Wheels and tyres),
    • the front left-hand driveshaft (see 29A, Driveshafts, Front right-hand driveshaft: Removal - Refitting, page 29A-4) .

II - REMOVAL OPERATION FOR PART CONCERNED

  • Cut:
    • the small clip (1) ,
    • the big clip (3) .
  • Move aside the front left-hand driveshaft gaiter (2) on the gearbox side.

Driveshafts

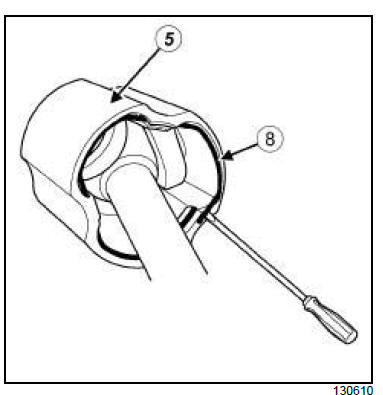

  • Remove:
    • the locking spring ring (8) using a screwdriver,
    • the driveshaft yoke sleeve (5) .

Driveshafts

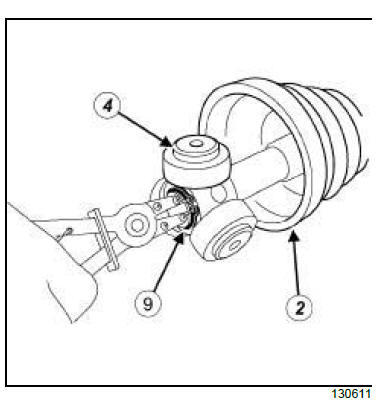

  • Remove:
    • the circlip (9) using circlip pliers,
    • the spider (4) ,
    • the driveshaft gaiter (2) .
Note: Mark the position of the spider and driveshaft before extracting the spider.
  • Remove as much grease as possible.

Driveshafts

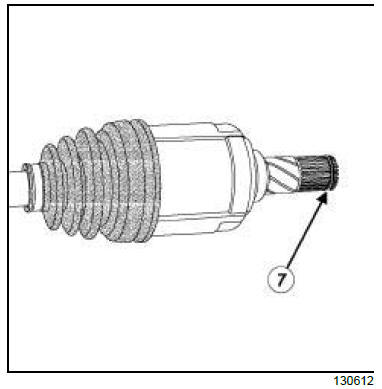

  • Remove the lock ring (7) .

6-SPEED MANUAL GEARBOX

  • Remove the left-hand side differential output seal (see 21A, Manual gearbox, Differential output seal: Removal - Refitting, page 21A-7) .

FK0 or FK8, and 6-SPEED AUTOMATIC GEARBOX

  • Remove the left-hand side differential output seal (see 23A, Automatic gearbox, Differential output seal: Removal - Refitting, page 23A-17) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace:
    • clips,
    • the locking ring,
    • the locking spring ring,
    • the differential output seal.

6-SPEED MANUAL GEARBOX

  • Refit the left-hand side differential output seal (see 21A, Manual gearbox, Differential output seal: Removal - Refitting, page 21A-7) .

FK0 or FK8, and 6-SPEED AUTOMATIC GEARBOX

  • Refit the left-hand side differential output seal (see 23A, Automatic gearbox, Differential output seal: Removal - Refitting, page 23A-17) .

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the new small clip;
    • the driveshaft gaiter,
    • the spider in the position marked during removal,
    • the new circlip,
    • the driveshaft sleeve,
    • the locking spring ring.
  • Divide the quantity of grease between the gaiter and the yoke sleeve.
  • Position the lips of the gaiter in the grooves of the yoke sleeve and the driveshaft.

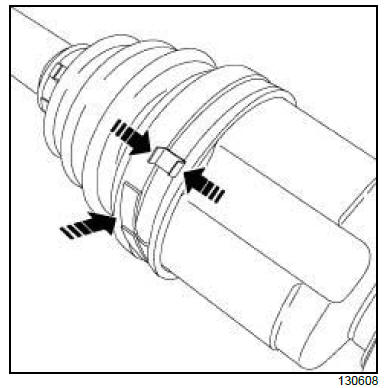

  • Refit the big clip.

M9R

Driveshafts

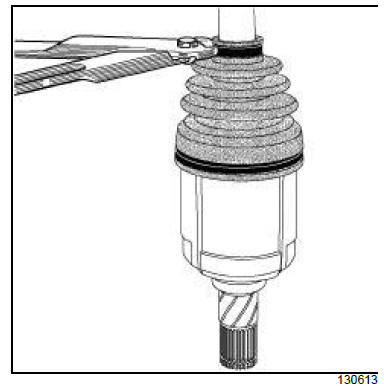

  • Tighten:

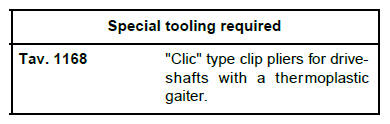

    • the small clip using the tool (Tav. 1168),
    • the big clip using the tool (Tav. 1168).

4X2 TRANSMISSION

Driveshafts

  • Tighten:
    • the small clip using a screwdriver,
    • the big clip using a screwdriver.

III - FINAL OPERATION.

  • Refit the front left-hand driveshaft (see 29A, Driveshafts, Front left-hand driveshaft: Removal - Refitting, page 29A-1) .

6-SPEED MANUAL GEARBOX

  • Remove the front left-hand splash guard (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection)
  • Fill the manual gearbox with oil (see 21A, Manual gearbox, Manual gearbox oils: Draining - Filling, page 21A-5) .
  • Refit the front left-hand splash guard (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection)

FK0 or FK8, and 6-SPEED AUTOMATIC GEARBOX

  • Fill the automatic transmission (see 23A, Automatic gearbox, Automatic gearbox oil: Draining - Filling, page 23A-11) .



  • Refit:
    • the front left-hand wheel (see Wheel: Removal - Refitting) , (35A, Wheels and tyres),
    • the engine undertray,
    • the engine undertray bolts.

Transfer box: Precautions for the repair

4X4 TRANSMISSION

Check the oil level or replace the oil only when the vehicle is parked on a flat surface.

When removing or refitting, protect the interior of the transfer box from dust or contamination.

Check the installation status before removal. If position marks are required, check that they do not interfere with part operation where they are applied.

Check the appearance of the removed components by looking for damage, deformation and unusual wear; replace them with new components if necessary.

As a rule, torque tighten the bolts or the nuts gradually (in several stages), progressively and diagonally from the interior towards the exterior.

If a tightening order is specified, make sure that it is followed.
