Renault Koleos Service Repair Manual: Transfer box oil: Draining - Filling

Renault Koleos Service Repair Manual / Transmission / Driveshafts / Transfer box oil: Draining - Filling

M9R, and 4X4 TRANSMISSION

Driveshafts

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

DRAINING

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove:
    • the engine undertray,
    • the front right-hand wheel (see Wheel: Removal - Refitting) (35A, Wheels and tyres).

Driveshafts

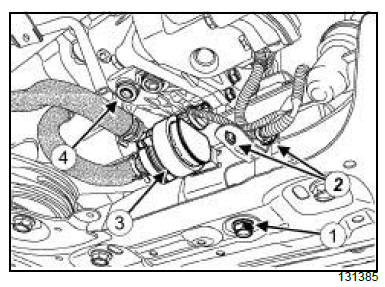

  • Remove the bolt (1) from the bracket of the electric coolant pump.
  • Unclip the wiring clips (2) .
  • Move aside the electric coolant pump (3) .
  • Remove:
    • the drain plug (4) ,
    • the drain plug seal.
  • Drain the oil from the transfer box.

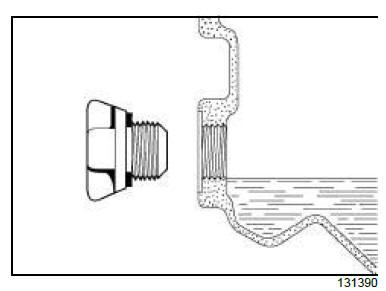

FILLING

  • Always replace the drain plug seal.
  • Refit:
    • the new drain plug seal,
    • the drain plug.

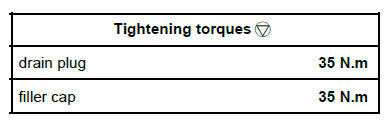

  • Torque tighten the drain plug (35 N.m).
  • Refit:
    • the electric water pump,
    • the bolt of the electric coolant pump bracket.

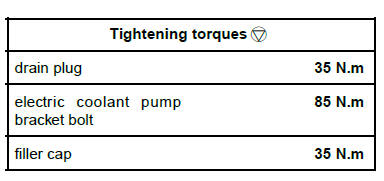

  • Torque tighten the electric coolant pump bracket bolt (85 N.m).
  • Clip on the wiring clips.

Driveshafts

  • Remove:

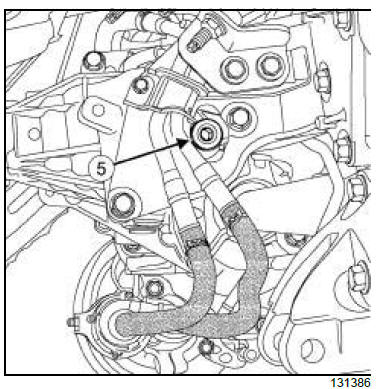

    • the filler cap (5) ,
    • the filler cap seal.

Driveshafts

  • Fill the transfer box with oil to the level of the opening.
  • Refit:
    • the new filler cap seal,
    • the filler cap.
  • Torque tighten the filler cap (35 N.m).
  • Refit:
    • the front right-hand wheel (see Wheel: Removal - Refitting) (35A, Wheels and tyres),
    • the engine undertray.

2TR, and 4X4 TRANSMISSION

Driveshafts

IMPORTANT Consult the safety and cleanliness advice and operation recommendations before carrying out any repair.

DRAINING

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove:
    • the engine undertray,
    • the connector pipe (see Intermediate pipe: Removal - Refitting) (19B, Exhaust).

Driveshafts

  • Remove:

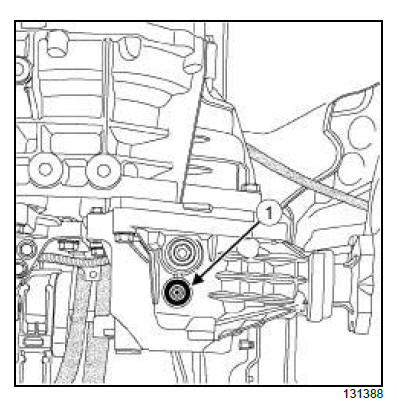

    • the drain plug (1) ,
    • the drain plug seal.
  • Drain the oil from the transfer box.

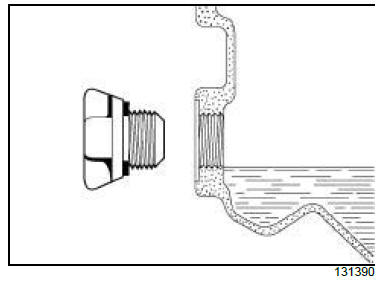

FILLING

  • Always replace the drain plug seal.
  • Refit:
    • the new drain plug seal,
    • the drain plug.
  • Torque tighten the drain plug (35 N.m).

Driveshafts

  • Remove:

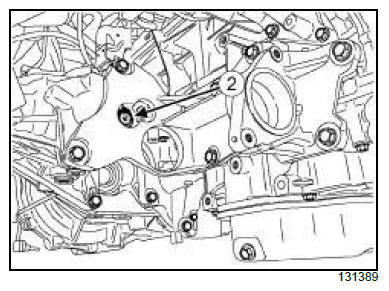

    • the filler cap (2) ,
    • the filler cap seal.

Driveshafts

  • Fill the transfer box with oil to the level of the opening.
  • Refit:
    • the new filler cap seal,
    • the filler cap.
  • Torque tighten the filler cap (35 N.m).
  • Refit:
    • the connector pipe (see Intermediate pipe: Removal - Refitting) (19B, Exhaust),
    • the engine undertray.
    Front left-hand driveshaft gaiter, gearbox side: Removal - Refitting

    Transfer box: Removal - Refitting
