Renault Koleos Service Repair Manual: Front right-hand driveshaft gaiter, gearbox side: Removal - Refitting

Renault Koleos Service Repair Manual / Transmission / Driveshafts / Front right-hand driveshaft gaiter, gearbox side: Removal - Refitting

Driveshafts

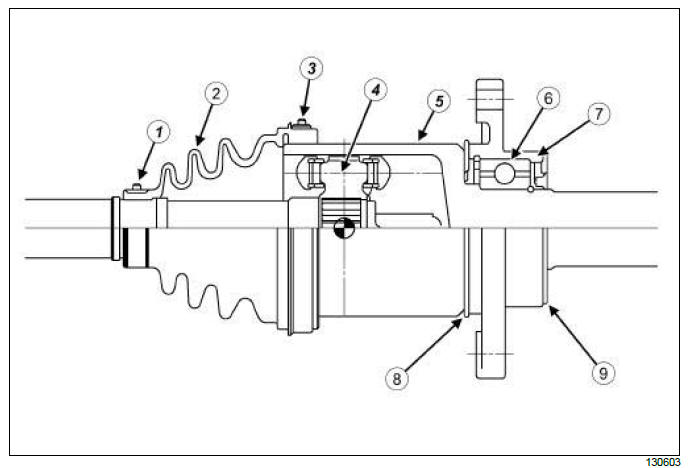

Driveshafts

  1. Small clip
  2. Driveshaft gaiter
  3. Big clip
  4. Spider
  5. Driveshaft yoke sleeve
  6. Relay shaft bearing
  7. Relay shaft bearing bracket
  8. Deflector
  9. Deflector

REMOVAL

I - OPERATION FOR REMOVAL OF PART CONCERNED

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
IMPORTANT To prevent the vehicle from falling, lash it to the vehicle lift using a strap.
  • Remove:
    • the engine undertray bolts,
    • the engine undertray.

6-SPEED MANUAL GEARBOX

  • Drain the manual gearbox (see 21A, Manual gearbox, Manual gearbox oils: Draining - Filling, page 21A-5) .

FK0 or FK8, and 6-SPEED AUTOMATIC GEARBOX

  • Drain the automatic gearbox oil (see 23A, Automatic gearbox, Automatic gearbox oil: Draining - Filling, page 23A-11) .



  • Remove:
    • the front right-hand wheel (see Wheel: Removal - Refitting) (35A, Wheels and tyres),
    • the front right-hand wheel driveshaft (see 29A, Driveshafts, Front right-hand driveshaft: Removal - Refitting, page 29A-4) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

  • Cut:
    • the small clip,
    • the big clip.
  • Move aside the front right-hand driveshaft gaiter on the gearbox side.

Driveshafts

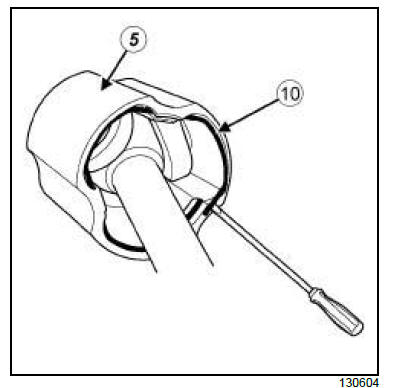

  • Remove:
    • the locking spring ring (10) using a screwdriver,
    • the driveshaft yoke sleeve (5) .

Driveshafts

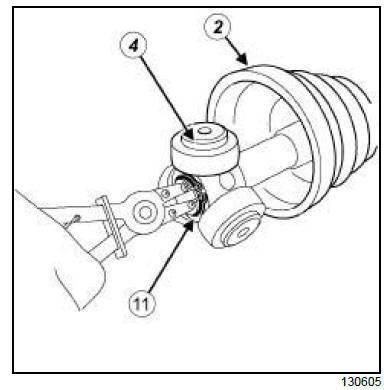

  • Remove:
    • the circlip (11) using circlip pliers,
    • the spider (4) ,
    • the driveshaft gaiter (2) .
Note: Mark the position of the spider and driveshaft before extracting the spider.
  • Remove as much grease as possible.

6-SPEED MANUAL GEARBOX

  • Remove the right-hand side differential output seal (see Differential output seal: Removal - Refitting)

FK0 or FK8, and 6-SPEED AUTOMATIC GEARBOX

  • Remove the right-hand side differential output seal (see 23A, Automatic gearbox, Differential output seal: Removal - Refitting, page 23A-17) .

REFITTING

I - REFITTING PREPARATION OPERATION

  • Always replace:
    • clips,
    • the circlip,
    • the locking spring ring,
    • the differential output seal.

6-SPEED MANUAL GEARBOX

  • Refit the right-hand side differential output seal (see Differential output seal: Removal - Refitting) .

FK0 or FK8, and 6-SPEED AUTOMATIC GEARBOX

  • Refit the right-hand side differential output seal (see 23A, Automatic gearbox, Differential output seal: Removal - Refitting, page 23A-17) .

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the small new clip,
    • the driveshaft gaiter,
    • the spider in the position marked during removal,
    • the circlip,
    • the driveshaft yoke sleeve,
    • the big clip,
    • the locking spring ring.
  • Divide the quantity of grease between the gaiter and the yoke sleeve.
  • Position the lips of the gaiter in the grooves of the yoke sleeve and the driveshaft.
  • Refit the big clip.

M9R

Driveshafts

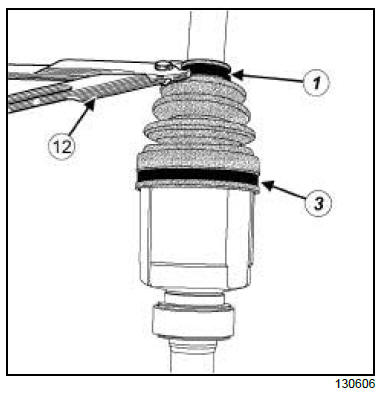

  • Tighten:

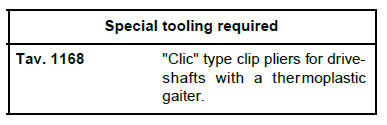

    • the small clip (1) using the tool (Tav. 1168) (12) ,
    • the big clip (3) using the tool (Tav. 1168) (12) .

6-SPEED MANUAL GEARBOX

Driveshafts

  • Tighten:

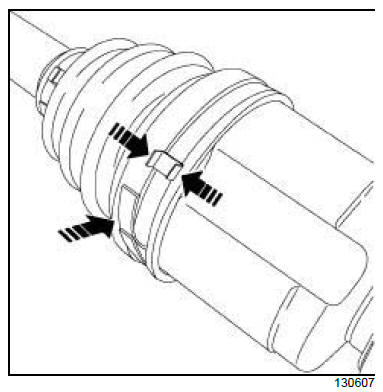

    • the small clip using a screwdriver,
    • the big clip using a screwdriver.

III - FINAL OPERATION.

6-SPEED MANUAL GEARBOX

  • Remove:
    • the front left-hand wheel (see Wheel: Removal - Refitting) (35A, Wheels and tyres),
    • the front left-hand splash guard (see Front wheel arch liner: Removal - Refitting) (55A, Exterior Protection).
  • Fill the manual gearbox with oil (see 21A, Manual gearbox, Manual gearbox oils: Draining - Filling, page 21A-5) .
  • Refit:
    • the front left-hand splash guard (see Front wheel arch liner: Removal - Refitting) (55A, Exterior protection),
    • the front left-hand wheel (see Wheel: Removal - Refitting) (35A, Wheels and tyres).

FK0 or FK8, and 6-SPEED AUTOMATIC GEARBOX

  • Fill the automatic transmission with oil (see 23A, Automatic gearbox, Automatic gearbox oil: Draining - Filling, page 23A-11) .
  • Refit:
    • the front right-hand driveshaft (see 29A, Driveshafts, Front right-hand driveshaft: Removal - Refitting, page 29A-4) .
    • the front right-hand wheel (see Wheel: Removal - Refitting) , (35A, Wheels and tyres),
    • the engine undertray.
    Front driveshaft gaiter, wheel side: Removal - Refitting

    Front left-hand driveshaft gaiter, gearbox side: Removal - Refitting
