Renault Koleos Service Repair Manual: Engine cooling fan assembly: Removal - Refitting

Renault Koleos Service Repair Manual / Engine and peripherals / Cooling / Engine cooling fan assembly: Removal - Refitting

M9R

Cooling

IMPORTANT To avoid all risk of damage to the systems, apply the safety and cleanliness instructions and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
  • Disconnect the battery.
  • Remove the engine undertray.
  • Drain the cooling system.

Cooling

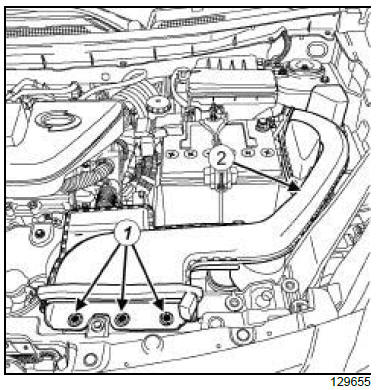

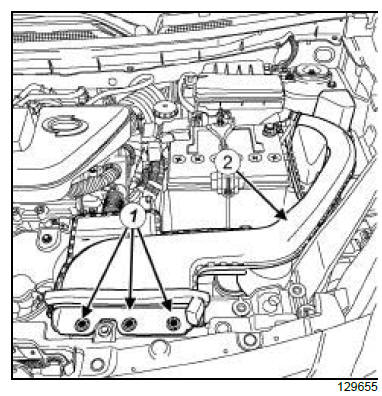

  • Unclip the clips (1) .
  • Remove the air inlet sleeve (2) .

Cooling

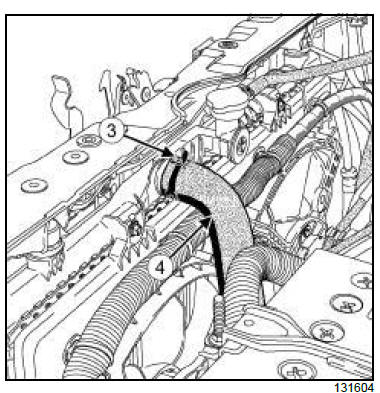

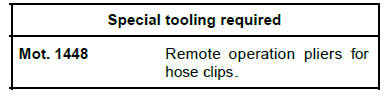

  • Remove the radiator top hose clip (3) using the tool (Mot. 1448).
  • Disconnect the cooling radiator top hose (4) .

Cooling

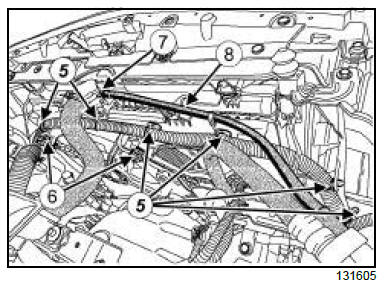

  • Unclip the wiring clips (5) .
  • Disconnect the connectors (6) from the motor-driven fan assembly.
  • Remove the clip (7) .
  • Disconnect the expansion bottle degassing hose (8) .
  • Move aside the expansion bottle degassing hose.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Cooling

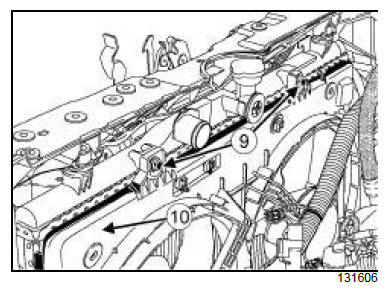

  • Remove:
    • the bolts (9) ,
    • the engine cooling fan assembly (10) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the engine cooling fan assembly,
    • the bolts (9) on the fan assembly.

II - FINAL OPERATION.

  • Refit the expansion bottle degassing hose in its original position.
  • Connect the degassing hose to the expansion bottle.
  • Refit the degassing hose clip.
  • Connect the motor-driven fan assembly connectors.
  • Clip on the wiring clips.
  • Connect the radiator top hose.
  • Refit:
    • the radiator top hose clip using the tool (Mot.1448),
    • the air intake sleeve.
  • Clip on the air inlet sleeve clips.
  • Refit the engine undertray.
  • Connect the battery.
  • Fill and bleed the cooling system.
  • Check that there are no leaks.

2TR

Cooling

IMPORTANT To avoid all risk of damage to the systems, apply the safety and cleanliness instructions and operation recommendations before carrying out any repair.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift.
  • Disconnect the battery.
  • Remove the engine undertray.
  • Drain the cooling system.

Cooling

  • Unclip the clips (1) .
  • Remove the air inlet sleeve (2) .

Cooling

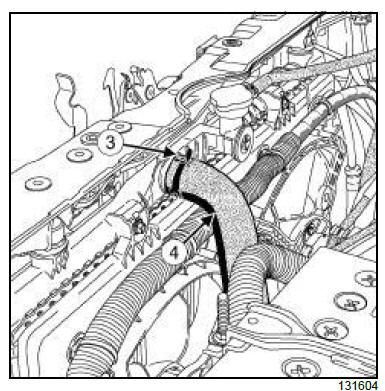

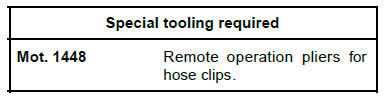

  • Remove the radiator top hose clip (3) using the tool (Mot. 1448).
  • Disconnect the radiator top hose (4) .

Cooling

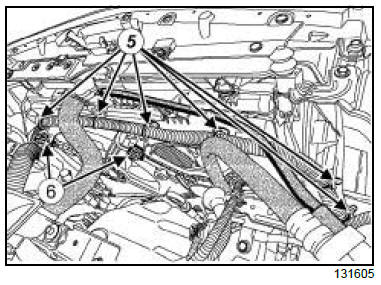

  • Unclip the wiring clips (5) .
  • Disconnect the connectors (6) from the motor-driven fan assembly.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Cooling

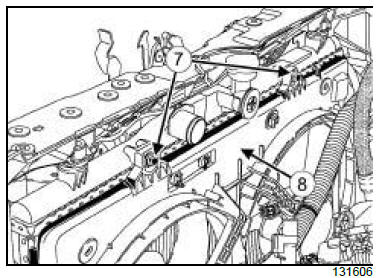

  • Remove:
    • the bolt (7) from the motor-driven fan assembly,
    • the engine cooling fan assembly (8) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the engine cooling fan assembly,
    • The bolt from the motor-driven fan assembly.

II - FINAL OPERATION.

  • Connect the motor-driven fan assembly connectors.
  • Clip on the wiring clips.
  • Connect the radiator top hose.
  • Refit:
    • the radiator top hose clip using the tool (Mot.1448),
    • the air intake sleeve.
  • Clip on the air inlet sleeve clips.
  • Refit the engine undertray.
  • Connect the battery.
  • Fill and bleed the cooling system.
  • Check that there are no leaks.
