Renault Koleos Service Repair Manual: Navigation aerial: Removal - Refitting

NAVIGATION AID 1 or NAVIGATION AID 2 or NAVIGATION AID 4

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the glovebox (see Glovebox: Removal - Refitting) (57A, Interior equipment),
    • the navigation computer (see 83C, On-board telematics system, Navigation computer: Removal - Refitting, page 83C-3) .

Electrical equipment

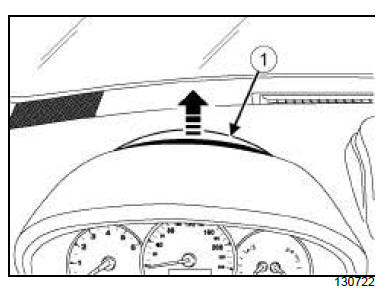

  • Remove the rear section of the dashboard cover (1) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

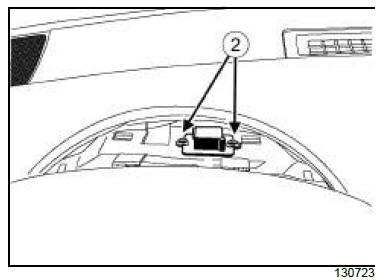

  • Remove the navigation aerial bolts (2) .

Electrical equipment

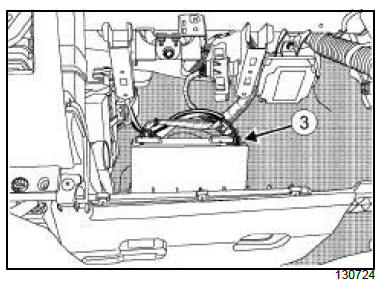

  • Disconnect the connector (3) .
Note: Use a rope to remove and refit the navigation aerial wiring.

Electrical equipment

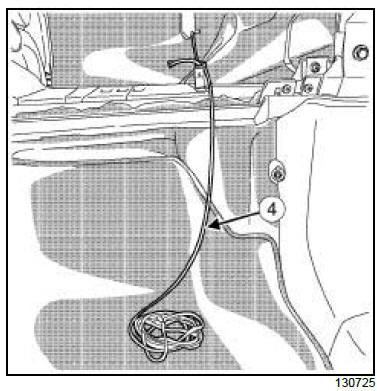

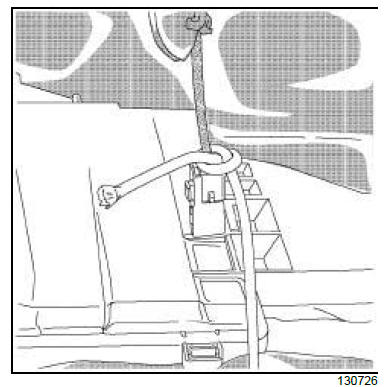

  • Secure the navigation aerial wiring using a rope (4) .

Electrical equipment

  • Remove:
    • the dashboard navigation aerial wiring by pulling it from the dashboard,
    • the navigation aerial.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the navigation aerial,
    • the navigation aerial wiring inside the dashboard by pulling the rope under the dashboard.
  • Detach the rope.
  • Connect the connector.
  • Refit the navigation aerial bolts.

II - FINAL OPERATION

  • Refit:
    • the rear section of the dashboard cover,
    • the navigation computer (see 83C, On-board telematics system, Navigation computer: Removal - Refitting, page 83C-3) ,
    • the glovebox (see Glovebox: Removal - Refitting) .
