Renault Koleos Owners Manual: Locking, unlocking the doors

If the remote control or, depending on the vehicle, the RENAULT card does not work

In some cases, the radio frequency remote control or the RENAULT card may not work:

  • RENAULT card/radio frequency remote control battery worn or run flat, vehicle battery flat, etc.
  • use of appliances operating on the same frequency as the card (mobile phone, etc.);
  • vehicle located in a high electromagnetic radiation zone.

It is then possible:

  • depending on the vehicle, use the radio frequency remote control or the emergency key integrated in the card to unlock the front left-hand door;
  • to lock each of the doors manually;
  • to use the interior door locking/unlocking control.
Never leave your vehicle with the key or RENAULT card inside.

Locking, unlocking the doors

Vehicles with key/remote control

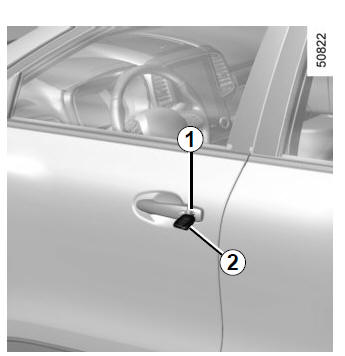

Using the key Insert the key 2 into the lock 1 and lock or unlock the front left-hand door.

Locking, unlocking the doors

Vehicles with RENAULT card

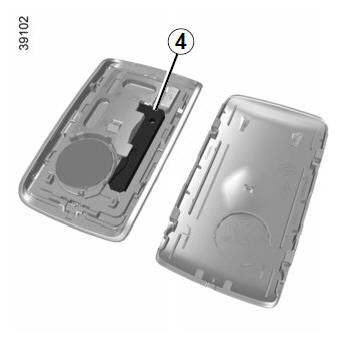

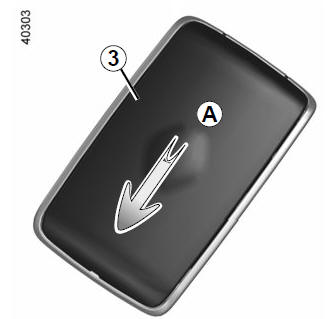

Access key 4 integrated in the card Slide the rear casing 3 downwards while pressing on zone A.

Locking, unlocking the doors

Locking, unlocking the doors

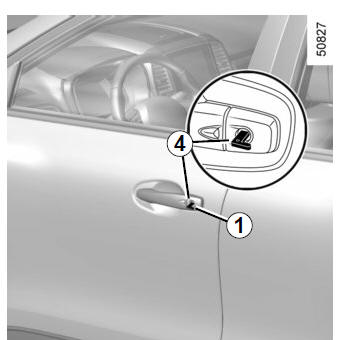

Using the integrated key Insert the key 4 into the lock 1 and lock or unlock the front left-hand door.

Once you are inside the vehicle, put the key back in its casing in the RENAULT card.

Locking, unlocking the doors

Interior locking/unlocking door control

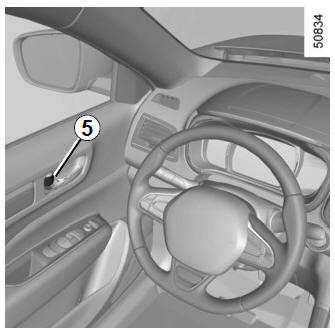

Depending on the vehicle, each door can be locked/unlocked by controlling knob 5 from the inside.

Driver's responsibility

If you decide to keep the doors locked when you are driving, remember that it may be more difficult for those assisting you to gain access to the passenger compartment in the event of an emergency.

Locking, unlocking the doors

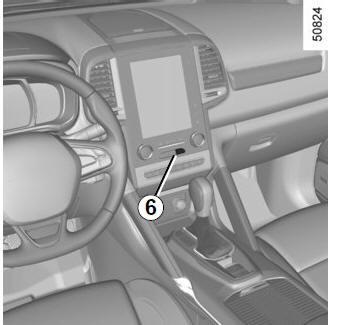

The switch 6 controls the doors and the boot simultaneously.

If a door or the tailgate is open or not closed properly, the doors and tailgate lock/unlock quickly.

If transporting an object with the tailgate open, you can still lock the doors: with the engine stopped, press and hold switch 6 for more than five seconds to lock the other doors.

And then close the driver's door while pulling the outside handle after getting out of the vehicle.

Locking the opening elements without the RENAULT card or the key

For example, in the event of a discharged battery or the RENAULT card or key temporarily not working, etc.

With the engine switched off and a door or tailgate open, press and hold the switch 6 for more than five seconds.

When the door is closed, all the doors and the tailgate will be locked.

Unlocking the vehicle from the outside is only possible with the RENAULT card in the vehicle's access zone or using the key.

Door and tailgate status indicator

With the ignition on, the warning light 6 informs you of the locking status of the opening elements:

  • indicator light on, the doors and tailgate are locked;
  • indicator light off, the doors and tailgate are unlocked.

When you lock the doors from the outside, the indicator light remains lit for a moment, and then goes out.

    Usage

    Opening and closing the doors
