Renault Koleos Owners Manual: Usage

There are two ways to unlock/lock the vehicle:

  • the "hands-free" function;
  • RENAULT card buttons.
Do not store the RENAULT card anywhere it may come into contact with other electronic equipment (computer, phone, etc.) as this could hinder its operation.



Driver's responsibility when parking or stopping the vehicle

Never leave an animal, child or adult who is not self-sufficient alone on your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or locking the doors.

Also, in hot and/or sunny weather, please remember that the temperature inside the passenger compartment increases very quickly.

RISK OF DEATH OR SERIOUS INJURY.

Usage

Using the card in hands-free mode

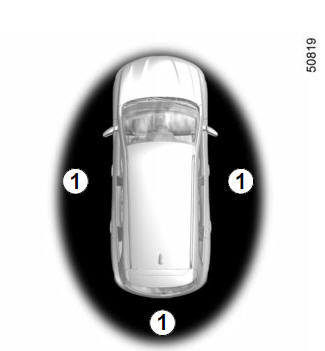

It allows locking/unlocking without input on the card RENAULT when within the access zone 1.

Note: It is possible to deactivate the hands-free system - please refer to the information on the "Vehicle settings customisation menu".

Usage

"Hands-free" unlocking

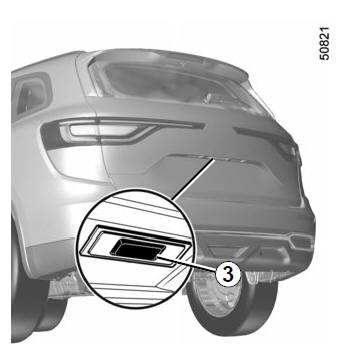

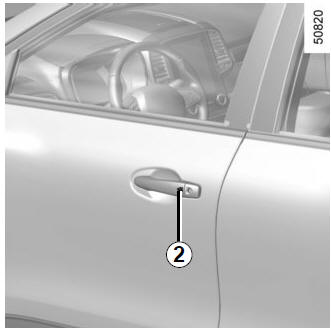

With the RENAULT card in zone 1, press the button 2 on the handle of one of the two front doors or the button 3 on the tailgate: the vehicle will unlock.

The hazard warning lights flash once to indicate that the doors have been unlocked.

Usage

Remote "Hands-free" locking

With the RENAULT card on you, and doors and boot closed, move away from the vehicle: it will lock automatically as soon as you leave the access zone.

Note: The distance at which the vehicle locks depends on the surroundings.

To indicate that the doors have been locked, the hazard warning lights flash once and then light up for approximately four seconds, and a beep sounds in confirmation.

Locking using button 2

With the doors and boot closed, press button 2 on one of the front door handles.

The vehicle will lock.

The hazard warning lights flash twice to indicate that the vehicle is locked.

Special features relating to vehicle locking

  • When locking, if a door is open or incorrectly closed, the vehicle will lock and unlock in quick succession without the hazard warning lights flashing;
  • after locking by pressing button 2, you have to wait approximately 3 seconds to be able to unlock the vehicle again.

Usage

Using the card as a remote control

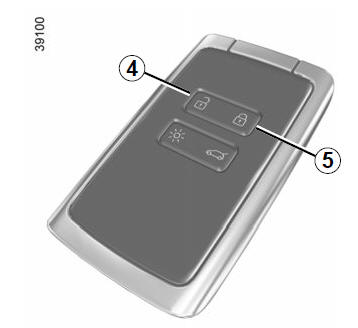

Unlocking with the card RENAULT Press the button 4.

The hazard warning lights flash once to indicate that the doors have been unlocked.

Locking using the RENAULT card With the doors and boot closed, press button 5: the vehicle will lock.

The hazard warning lights flash twice to indicate that the vehicle is locked.

NB: The maximum distance at which the vehicle locks depends on the surroundings.

Special features If the a door or the boot is open or not properly closed, the vehicle cannot be locked. The vehicle will lock/unlock in quick succession, but the hazard warning lights will not flash.

The card buttons are deactivated when the engine is running.

Usage

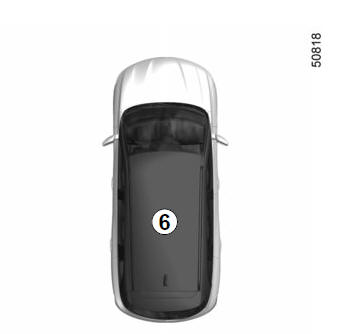

If, while the engine is running, a door is opened and closed, and the card is no longer in the zone 6, the message Keycard not detected indicates that the card is not inside the vehicle. This avoids you driving away after having dropped off a passenger who has the card, for example.

The warning disappears when the card is detected again.

Usage

Locking/unlocking only the boot

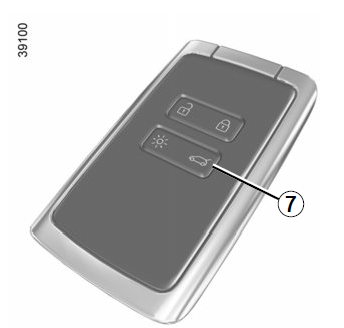

Press the button 7 to lock/unlock the boot only.

Driver's responsibility when parking or stopping the vehicle

Never leave an animal, child or adult who is not self-sufficient alone on your vehicle, even for a short time.

They may pose a risk to themselves or to others by starting the engine, activating equipment such as the electric windows or locking the doors.

Also, in hot and/or sunny weather, please remember that the temperature inside the passenger compartment increases very quickly.

RISK OF DEATH OR SERIOUS INJURY.

    General information

    Locking, unlocking the doors
