REMOVAL

I - REMOVAL PREPARATION OPERATION

1 - Radio aerial incorporated in the window glass

  • Remove:
    • the upper tailgate trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim),
    • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the upper trim of the C-pillar (see C-pillar upper trim: Removal - Refitting) (71A, Body internal trim).

2 - Roof radio aerial

  • Remove:
    • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the upper trim of the C-pillar (see C-pillar upper trim: Removal - Refitting) (71A, Body internal trim),
    • the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim).

II - REMOVAL OPERATION FOR THE PART CONCERNED

1 - Radio aerial incorporated in the window glass

Electrical equipment

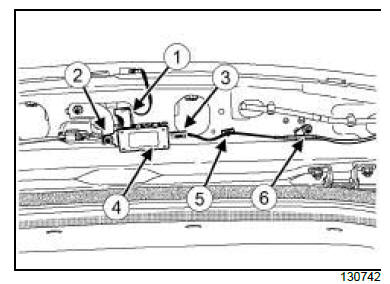

  • Disconnect the connector (1) .
  • Remove the bolt (2) .
  • Disconnect the connector (3) .
  • Remove:
    • the amplifier mounting clip using a flat-blade screwdriver,
    • the amplifier (4) .
  • Unfasten the clip (5) .
  • Remove the bolt (6) .

Electrical equipment

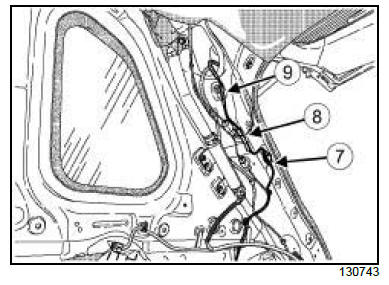

  • Disconnect the connector (7) .
  • Unfasten clip (8) .
  • Remove the bolt (9) .

Electrical equipment

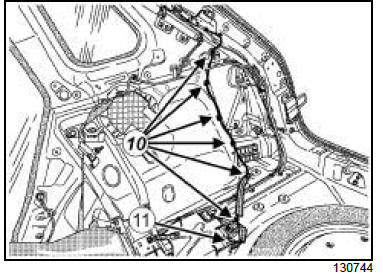

  • Unclip the clips (10) .
  • Disconnect the connector (11) .
  • Remove the radio aerial wiring.
Note: When replacing the printed radio aerial on the rear screen, replace the rear screen glass (see Rear screen: Removal - Refitting) (54A, Windows).

2 - Roof radio aerial

Electrical equipment

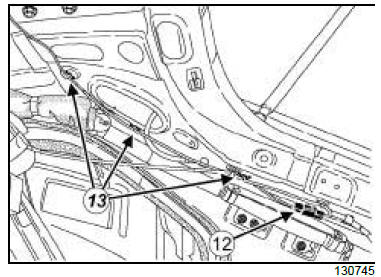

  • Disconnect the connector (12) .
  • Unclip the clips (13) .

Electrical equipment

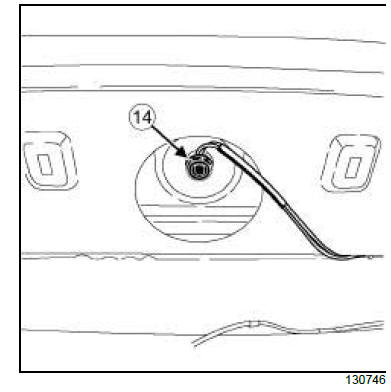

  • Remove:
    • the nut (14) ,
    • the radio aerial.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

1 - Radio aerial incorporated in the window glass

  • Refit:
    • the radio aerial,
    • the radio aerial wiring.
  • Connect the connectors (11) .
  • Attach the clips (10) .
  • Refit the bolt (9) .
  • Clip on the clip (8) .
  • Connect the connector (7) .
  • Refit the bolt (6) .
  • Engage clip (5) .
  • Refit the amplifier (4) .
  • Clip on the amplifier mounting clip.
  • Connect the connector (3) .
  • Refit the bolt (2) .
  • Connect the connector (1) .

2 - Roof radio aerial

  • Refit:
    • the radio aerial,
    • the radio aerial nut.
  • Attach the clips (13) .
  • Connect the connector (12) .

II - FINAL OPERATION.

1 - Radio aerial incorporated in the window glass

  • Refit:
    • the upper trim of the C-pillar (see C-pillar upper trim: Removal - Refitting) (71A, Body internal trim),
    • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the upper tailgate trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).

2 - Roof radio aerial

  • Refit:
    • the headlining (see Headlining: Removal - Refitting) (71A, Body internal trim),
    • the upper trim of the C-pillar (see C-pillar upper trim: Removal - Refitting) (71A, Body internal trim),
    • the rear pillar lower trim (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim).
