Renault Koleos Service Repair Manual: Receiver: Removal - Refitting

Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the rear centre luggage compartment floor trim (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the front centre luggage compartment floor trim (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the luggage compartment side trim (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim).

II - REMOVAL OPERATION FOR THE PART CONCERNED

1 - Tuner-amplifier

Electrical equipment

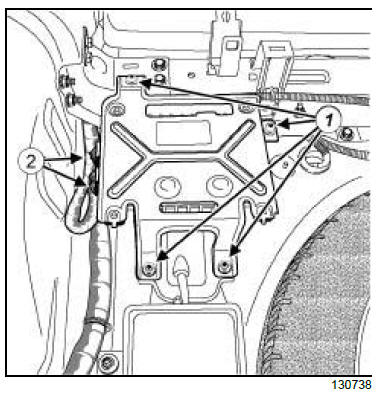

  • Remove nuts (1) .
  • Disconnect the connectors (2) .

Electrical equipment

  • Remove:

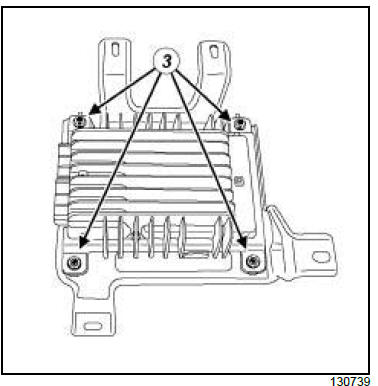

    • the nuts (3) ,
    • the tuner-amplifier from the support.

2 - Radio unit

Electrical equipment

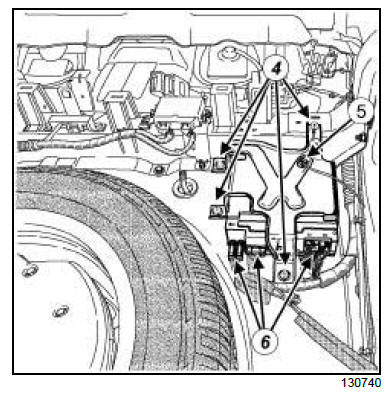

  • Remove the bolts (4) .
  • Unclip the wiring at (5) .
  • Disconnect the connectors (6) .

Electrical equipment

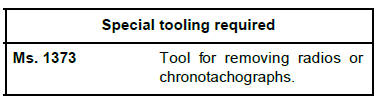

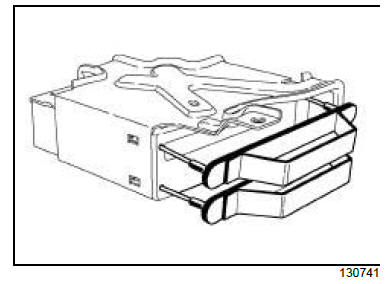

  • Remove the radio unit using the tool (Ms. 1373).

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

1 - Tuner-amplifier

  • Refit:
    • the tuner-amplifier to the support,
    • the nuts.
  • Connect the connectors.
  • Refit the nuts.

2 - Radio unit

  • Refit the radio unit to the support.
  • Connect the connectors.
  • Attach the wiring.
  • Refit the bolts.

II - FINAL OPERATION.

  • Refit:
    • the luggage compartment side trim (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    • the lower trim of the C-pillar (see C-pillar lower trim: Removal - Refitting) (71A, Body internal trim),
    • the front centre luggage compartment floor trim (see Luggage compartment floor lining: Removal - Refitting) (71A, Body internal trim),
    Radio: Removal - Refitting

    Radio aerial: Removal - Refitting
