I - LIST OF COMPONENTS

(1) Radio control satellite
(2.2) Radio aerial
(3) Radio
(4) Radio unit
(5) Display
(6) Tweeter
(7) Front central speaker
(8) Speaker in the front door
(9) Speaker in the rear door
(10) Subwoofer
(11) Tuner-amplifier

II - LOCATION OF COMPONENTS

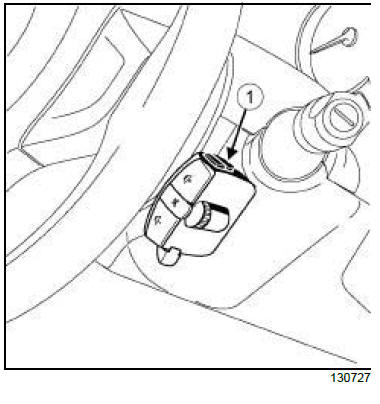

1 - Radio control satellite

Electrical equipment

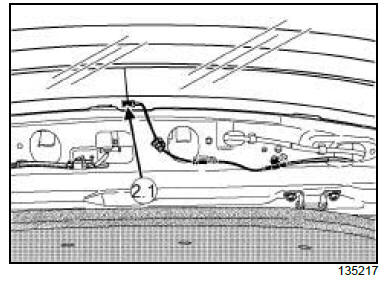

2.1 - Window mounted radio aerial

Electrical equipment

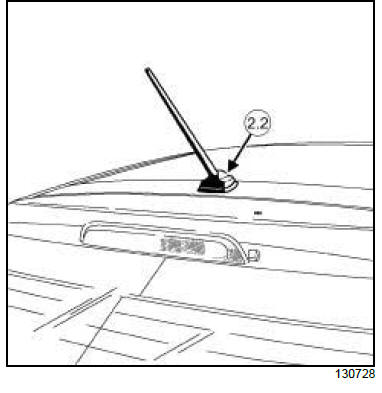

2.2 - Roof mounted radio aerial

Electrical equipment

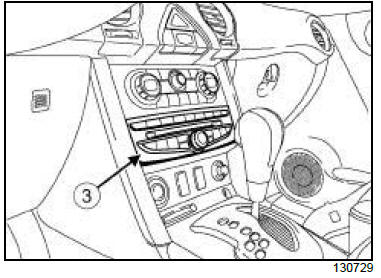

3 - Radio

Electrical equipment

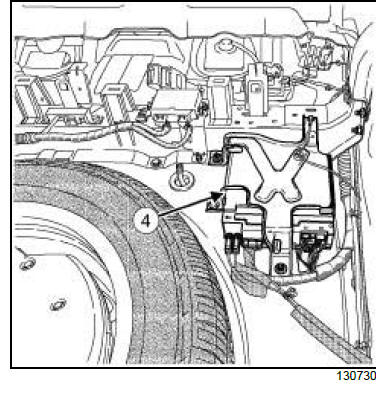

4 - Radio unit

Electrical equipment

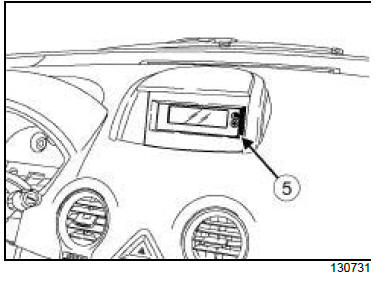

5 - Display

Electrical equipment

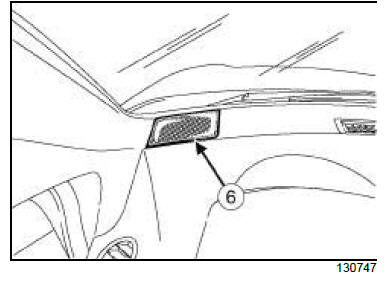

6 - Tweeter

Electrical equipment

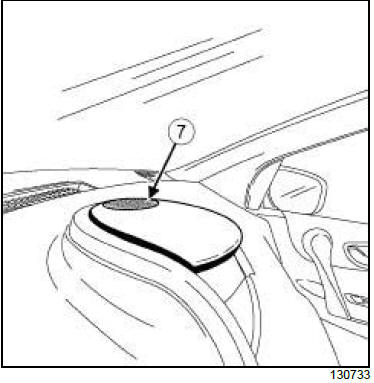

7- Front central speaker

Electrical equipment

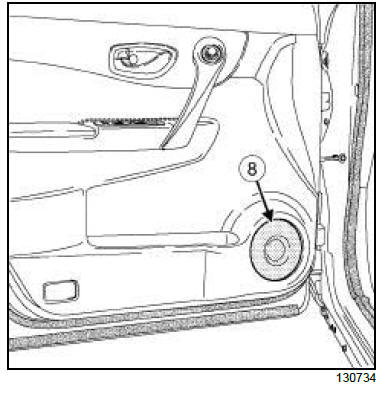

8 - Speaker in the front door

Electrical equipment

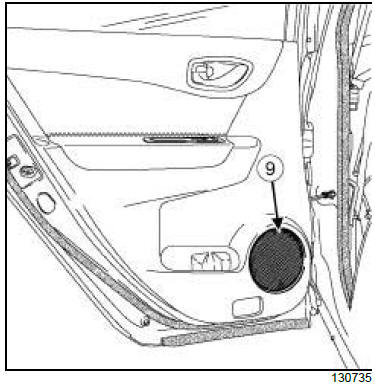

9 - Speaker in the rear door

Electrical equipment

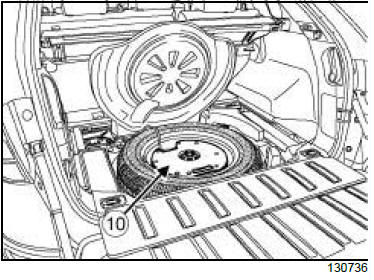

10 - Subwoofer

Electrical equipment

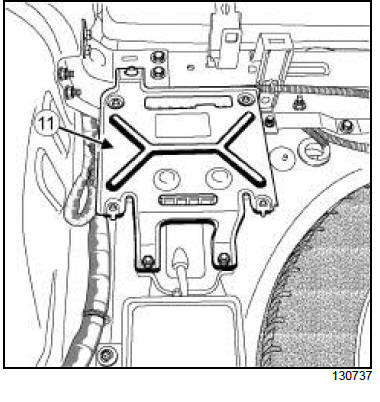

11 - Tuner - amplifier

Electrical equipment
