Renault Koleos Service Repair Manual: Screen washer pump: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / Wiping - washing / Screen washer pump: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment).
  • Remove the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).

II - REMOVAL OF PART CONCERNED

Electrical equipment

  • Place a container underneath the windscreen washer bottle.

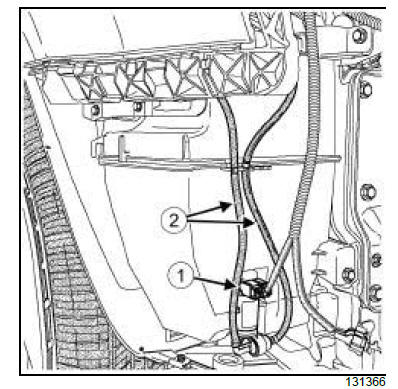

  • Disconnect:
    • the connector (1) from the windscreen washer pump,
    • the supply pipes (2) .
Note: Mark the routing of the supply pipes and wiring.
  • Remove the windscreen washer pump.

REFITTING

I - REFITTING PART CONCERNED

  • Refit the windscreen washer pump.
  • Connect:
    • the supply pipes,
    • the windscreen washer pump connector.

II - FINAL OPERATION.

  • Refit the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).
  • Fill-up the windscreen washer bottle.
