ELECTRONIC STABILITY PROGRAM 2 or ELECTRONIC STABILITY PROGRAM

Anti-lock braking system

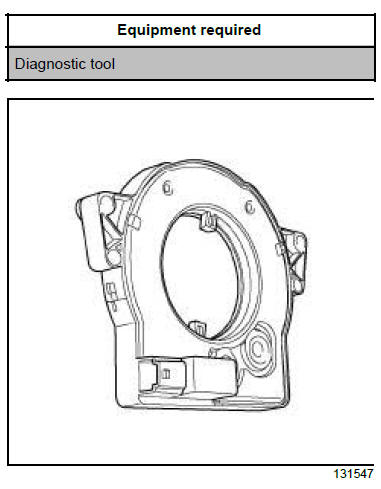

Note: The steering wheel angle sensor is located on the steering column and clipped onto the rotary switch.



IMPORTANT To prevent any accidental triggering whilst working on or near a pyrotechnic component (airbags or pretensioners), lock the airbag computer using the Diagnostic tool.

When this function is activated, all the trigger lines are inhibited and the airbag warning light on the instrument panel lights up continuously (ignition on).



IMPORTANT To prevent the pyrotechnic components from being permanently deactivated or triggered (airbags or pretensioners), wait for at least 3 min after disconnecting the battery.



IMPORTANT Never handle the pyrotechnic systems (pretensioners or airbags) near to a source of heat or naked flame - they may be triggered.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Disconnect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Remove:
    • the driver's front airbag (see Driver's frontal airbag: Removal - Refitting) (88C, Airbags and pretensioners),
    • the steering wheel (see 36A, Steering assembly, Steering wheel: Removal - Refitting, page 36A- 39) ,
    • the radio control satellite (see Radio control satellite: Removal - Refitting) (86A, Radio),
    • the steering column covers (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the rotary switch (see Rotary switch: Removal - Refitting) (84A, Control - Signal).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Anti-lock braking system

  • Remove:

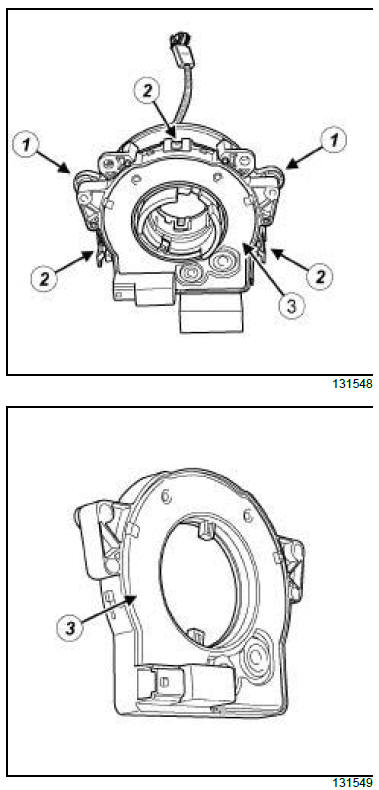

    • the bolts (1) from the steering wheel angle sensor,
    • the steering wheel angle sensor (3) from the rotary switch by unclipping it at (2) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

Anti-lock braking system

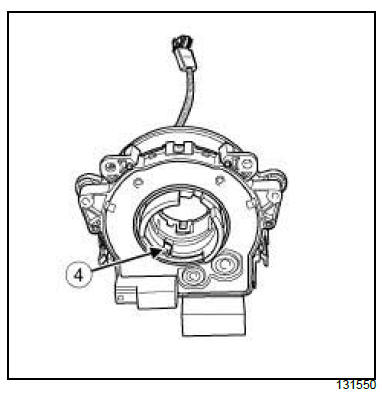

  • Clip the steering wheel angle sensor onto the rotary switch by placing the rotor (4) into its original position.
  • Refit the bolts of the steering wheel angle sensor.

II - FINAL OPERATION.

  • Refit:
    • the rotary switch (see Rotary switch: Removal - Refitting) (84A, Control - Signal),
    • the steering column covers (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the steering wheel (see 36A, Steering assembly, Steering wheel: Removal - Refitting, page 36A- 39) ,
    • the driver's front airbag (see Driver's frontal airbag: Removal - Refitting) (88C, Airbags and pretensioners).
  • Connect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Configure the steering wheel angle sensor (see Fault finding - Configurations and Programming) (38C, Anti-lock braking system).
