Renault Koleos Service Repair Manual: Navigation interface unit: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / On-board telematics system / Navigation interface unit: Removal - Refitting

NAVIGATION AID 1 or NAVIGATION AID 2 or NAVIGATION AID 4

REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

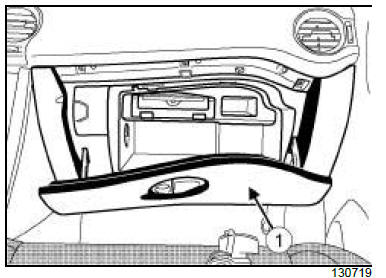

  • Remove the glovebox (1) (see Glovebox: Removal - Refitting) (57A, Interior equipment).

Electrical equipment

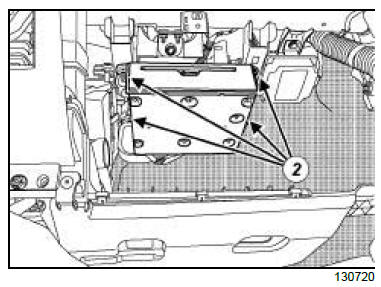

  • Remove the bolts (2) from the navigation computer.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

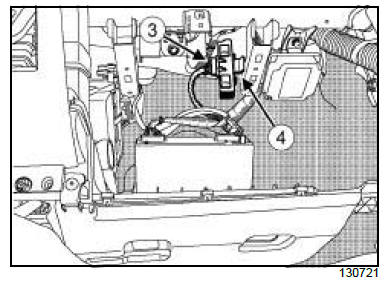

  • Disconnect the connector (3) .
  • Unclip the navigation interface unit at (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Clip on the navigation interface unit.
  • Connect the navigation interface unit connector.

II - FINAL OPERATION.

  • Refit:
    • the navigation computer bolts,
    • the glovebox (see Glovebox: Removal - Refitting) (57A, Interior equipment).
    Navigation computer: Removal - Refitting

    Central control: Removal - Refitting
