Renault Koleos Service Repair Manual: Navigation computer: Removal - Refitting

Renault Koleos Service Repair Manual / Electrical equipment / On-board telematics system / Navigation computer: Removal - Refitting

NAVIGATION AID 1 or NAVIGATION AID 2 or NAVIGATION AID 4

REMOVAL

I - REMOVAL PREPARATION OPERATION

Electrical equipment

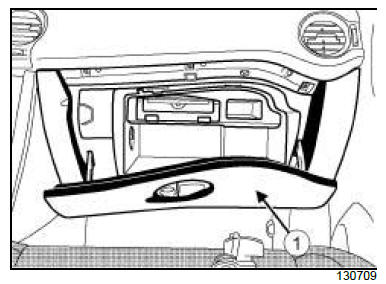

  • Remove the glovebox (1) (see Glovebox: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

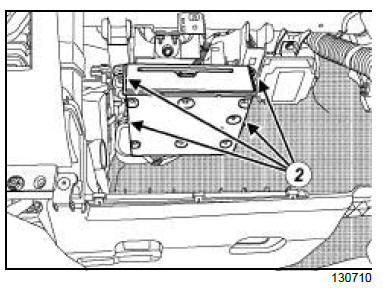

  • Remove the bolts (2) .

Electrical equipment

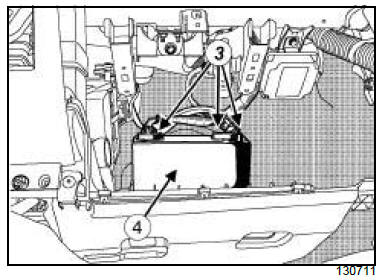

  • Disconnect the connectors (3) .
  • Remove the navigation computer (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Connect the navigation computer connectors.
  • Refit:
    • the navigation computer,
    • the navigation computer bolts.

II - FINAL OPERATION.

  • Refit the glovebox (see Glovebox: Removal - Refitting) (57A, Interior equipment).
