Renault Koleos Service Repair Manual: Fuses

Fuses: List and location of components

I - LIST OF COMPONENTS

  1. Passenger compartment fuse and relay box
  2. Engine fuse and relay box / supply fuse board
  3. Battery protection fuses
  4. Engine compartment connection unit

II - LOCATION OF COMPONENTS

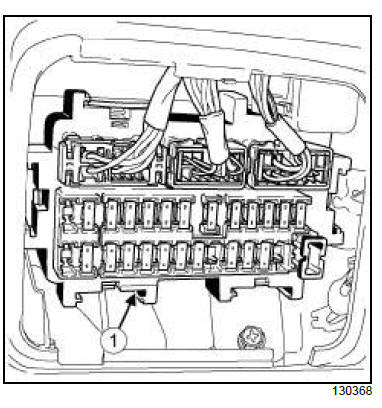

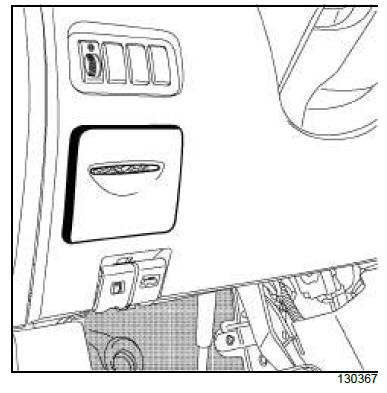

1 - Passenger compartment fuse and relay box

Electrical equipment

Electrical equipment

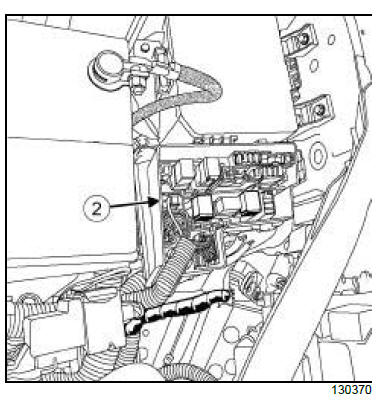

2 - Engine fuse and relay box / supply fuse board

Electrical equipment

Electrical equipment

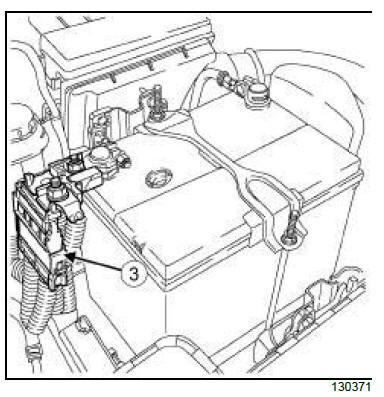

3 - Battery protection fuses

Electrical equipment

These fuses are located on the positive battery terminal.

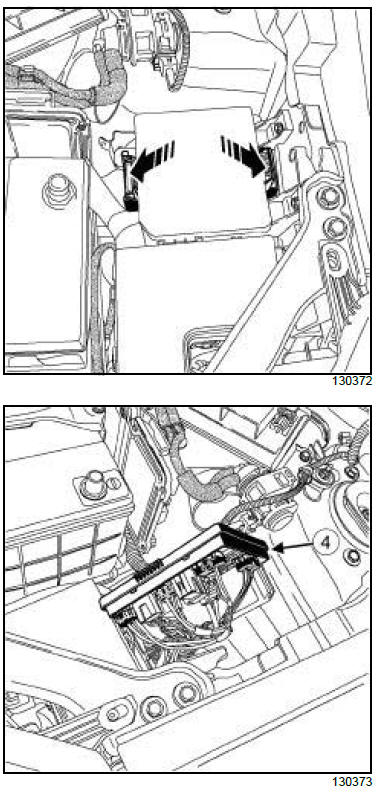

4 - Engine compartment connection unit

Electrical equipment
