REMOVAL - REFITTING

OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

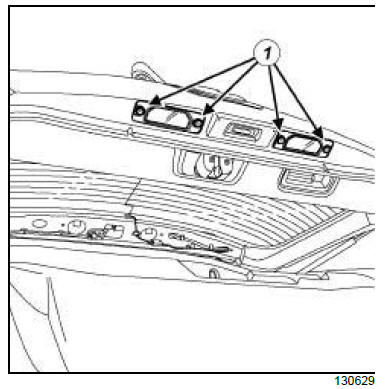

  • Remove the number plate light bolts (1) .
  • Disconnect the number plate light connectors.
  • Remove the number plate lights.

Electrical equipment

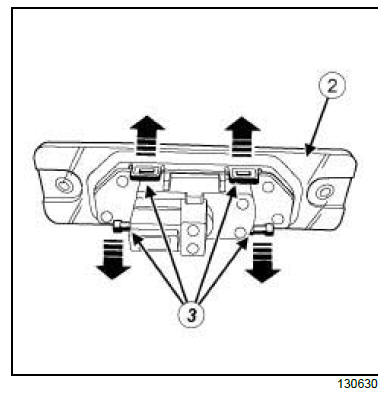

  • Unclip the plate (2) at (3) .

Electrical equipment

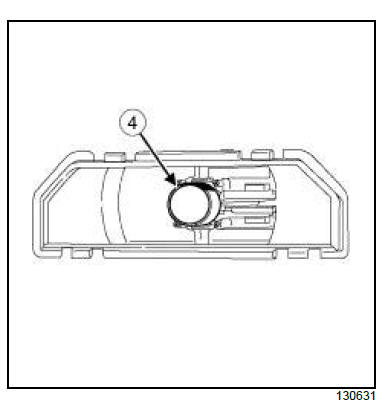

  • Remove the bulb (4) .

REFITTING

REFITTING OPERATION FOR PART CONCERNED

  • When replacing the bulb, use an approved W5W bulb.
  • Refit the bulb.
  • Clip on the plate.
  • Connect the number plate light connectors.
  • Refit:
    • the number plate lights,
    • the number plate light bolts.
