REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the headrest,
    • the rear centre armrest (see 79A, Seat components, Rear centre arm rest: Removal - Refitting, page 79A-5) ,
    • the 1/3 and 2/3 rear bench seatback (see 76A, Rear seat frames and runners, Complete rear seat: Removal - Refitting, page 76A-1) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Rear seat trim

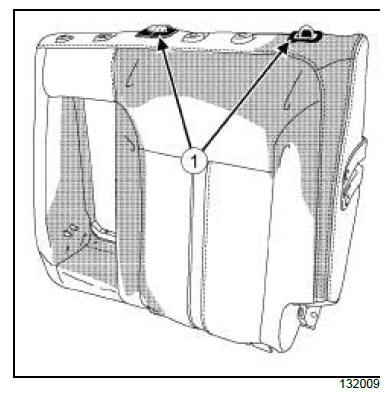

  • Remove the trim at (1) .

Rear seat trim

  • Remove:

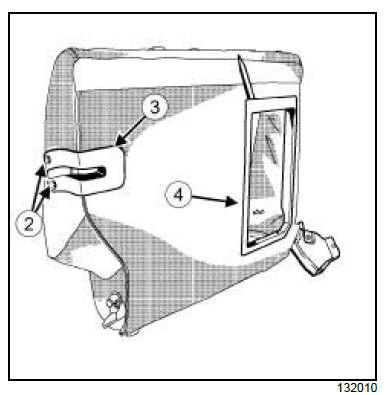

    • the bolts (2) ,
    • the rear bench seat lock trim (3) ,
    • the armrest trim (4) ,
    • the bolt.

Rear seat trim

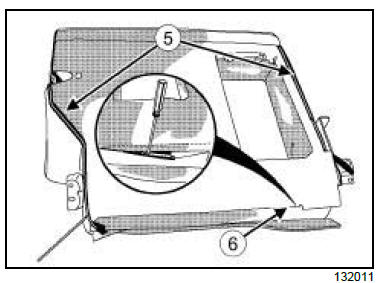

  • Open the zip fasteners (5) .
  • Unclip the lower cover at (6) .

Rear seat trim

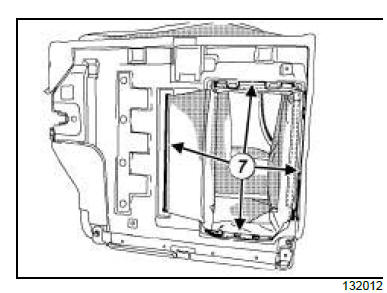

  • Remove the cover at (7) .

Rear seat trim

  • Remove:
    • the cover partially to access the headrest guides,

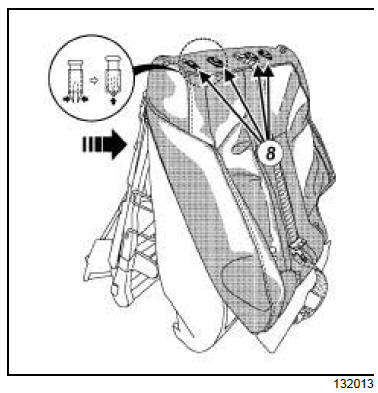

    • the headrest guides (8) .
  • Cut the seatback trim retaining clips.
  • Remove the 1/3 and 2/3 rear bench seatback trim.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the 1/3 and 2/3 rear bench seatback trim,
    • clip the seatback trim onto the foam.
  • Check that the trim is correctly positioned on the foam.
  • Refit:
    • the headrest guides,
    • the cover,
    • the cover (7) ,
    • the lower cover (6)
  • Close the zip fasteners.
  • Refit:
    • the bolt,
    • the armrest trim,
    • the rear bench seat lock trim,
    • the bolts (2) ,
    • the trim (1) .

II - FINAL OPERATION.

  • Refit:
    • the 1/3 and 2/3 rear bench seatbacks (see 76A, Rear seat frames and runners, Complete rear seat: Removal - Refitting, page 76A-1) ,
    • the rear centre armrest (see 79A, Seat components, Rear centre arm rest: Removal - Refitting, page 79A-5) ,
    • the head rest.
