Renault Koleos Service Repair Manual: 1/3 and 2/3 rear bench seat trim: Removal - Refitting

Renault Koleos Service Repair Manual / Trim and upholstery / Rear seat trim / 1/3 and 2/3 rear bench seat trim: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the 1/3 and 2/3 rear bench seat base (see 1/3 and 2/3 rear bench seat: Removal - Refitting) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Rear seat trim

  • Remove:

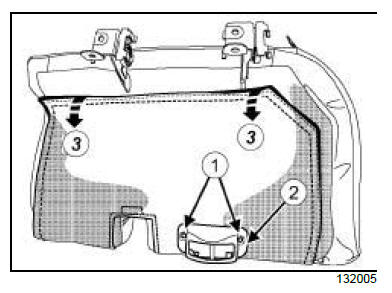

    • the bolts (1) ,
    • the rear bench seat lock trim (2) .
  • Uncover the seat base trim at (3) .

Rear seat trim

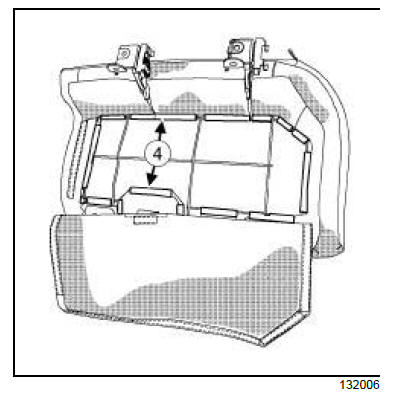

  • Unclip the trims at (4) .

Rear seat trim

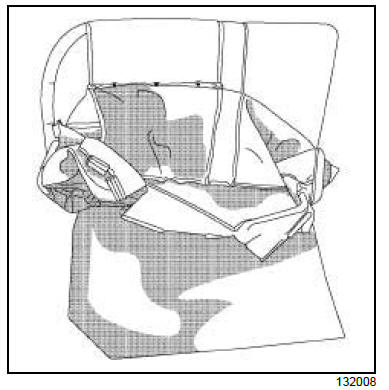

  • Remove the trim and foam from the seat base.

Rear seat trim

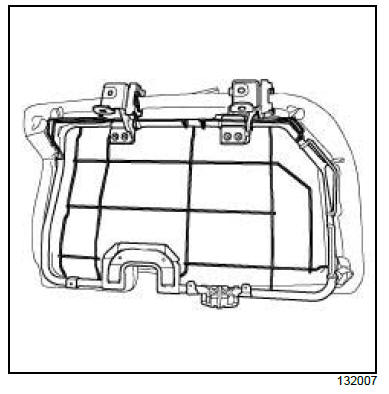

  • Cut the seat base trim retaining clips.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the seat base trim on the foam.
  • Check that the trim is correctly positioned on the foam.
  • Refit:
    • the foam - trim assembly on the seat base frame,
    • the clips (4) .
  • Cover the seat base trim.
  • Refit:
    • the rear bench seat lock trim,
    • the bolts.

II - FINAL OPERATION.

  • Refit the 1/3 and 2/3 rear bench seat base (see 1/3 and 2/3 rear bench seat: Removal - Refitting) .
    Rear seat trim
