REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).
  • Completely lower the rear side door window to remove the window bolts.

Window sealing

  • Remove:
    •  the rear side door channel partially,

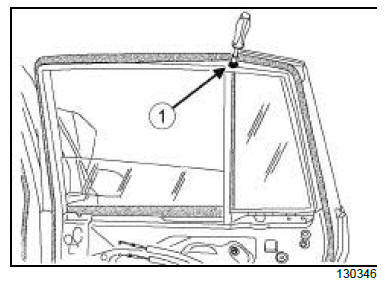

    •  the fixed upright upper bolt (1) .

Window sealing

  • Remove:

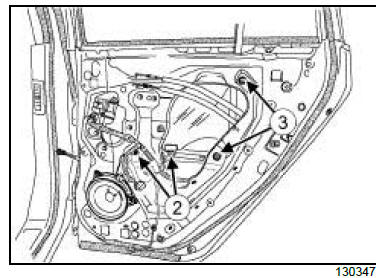

    • the window bolts (2) ,
    • the fixed upright bolts (3) .
  • Turn the fixed upright a quarter of a turn to remove the rear side door sliding window.

Window sealing

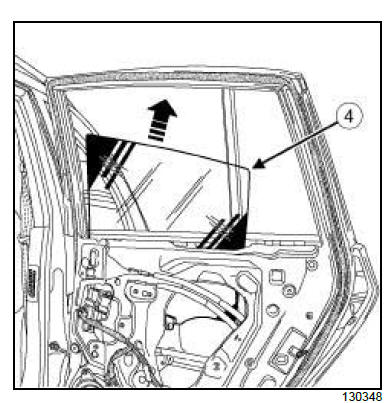

  • Remove the sliding window (4) from the rear side door.

II - OPERATION FOR REMOVAL OF PART CONCERNED

Window sealing

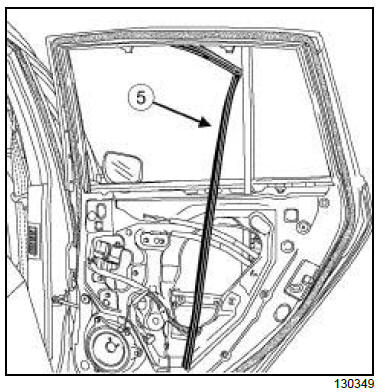

  • Remove the rear side door window channel (5) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear side door window channel (5) .

II - FINAL OPERATION.

  • Refit:
    • the rear side door sliding window (4) in the door box section,
    • the fixed upright bolts (3) ,
    • the window bolts (2)
    • the fixed upright upper bolt (1) ,
    • the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).
