Renault Koleos Service Repair Manual: Distribution motor: Removal - Refitting

Renault Koleos Service Repair Manual / Air conditioning / Heating / Distribution motor: Removal - Refitting

AIR CON 02

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the lower cover on the left-hand side of the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the A pillar air distribution duct (see 61A, Heating, A-pillar air distribution duct: Removal - Refitting, page 61A-64) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

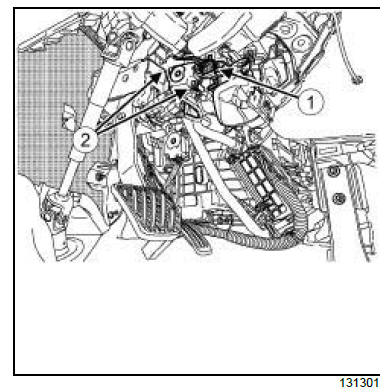

  • Disconnect the connector (1) .
  • Remove:
    • the bolts (2) ,
    • the distribution motor.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the distribution motor,
    • the distribution motor bolts.
  • Connect the connector.

II - FINAL OPERATION.

  • Refit:
    • the A pillar air distribution duct (see 61A, Heating, A-pillar air distribution duct: Removal - Refitting, page 61A-64) .
    • the lower cover on the left-hand side of the centre panel (see Dashboard: Removal - Refitting) (57A, Interior equipment),
    • the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

External temperature sensor: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • the radiator grille (see Radiator grille: Removal - Refitting) (56A, Exterior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

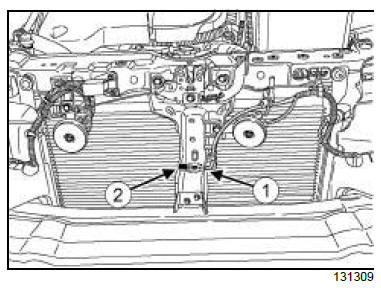

  • Disconnect the connector (1) .
  • Unclip the external temperature sensor (2) using a flat-blade screwdriver.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the external temperature sensor.
  • Connect the connector.

II - FINAL OPERATION.

  • Refit the radiator grille (see Radiator grille: Removal - Refitting) (56A, Exterior equipment).
    Mixer motor: Removal - Refitting

    Passenger compartment temperature sensor: Removal - Refitting
