Renault Koleos Service Repair Manual: Passenger compartment temperature sensor: Removal - Refitting

Renault Koleos Service Repair Manual / Air conditioning / Heating / Passenger compartment temperature sensor: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

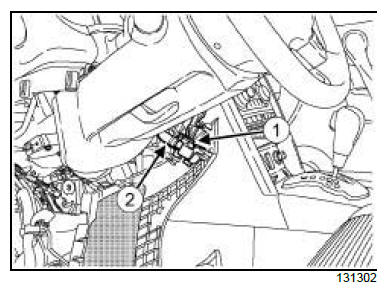

  • Disconnect:
    • the connector (1) ,
    • the pipe (2) from the sensor.

Heating

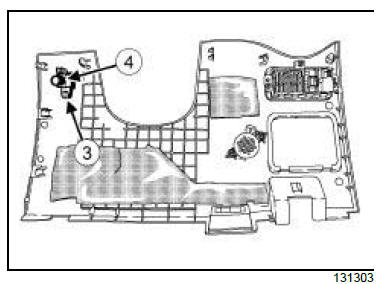

  • Remove:
    • the bolt (3) ,
    • the passenger compartment temperature sensor (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the passenger compartment temperature sensor,
    • the passenger compartment temperature sensor bolt.
  • Connect:
    • the pipe to the sensor,
    • the connector.

II - FINAL OPERATION.

  • Refit the dashboard lower cover on the driver's side (see Dashboard: Removal - Refitting) (57A, Interior equipment).

Insolation sensor: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

Heating

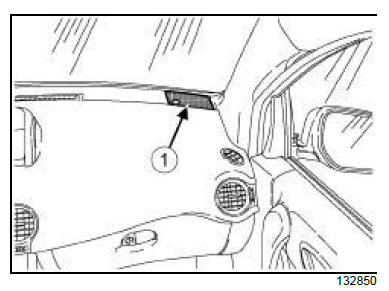

  • Remove the grille (1) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Heating

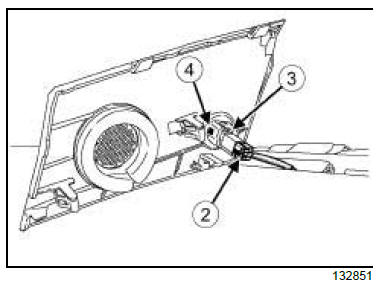

  • Disconnect the connector (2) .
  • Unclip the solar radiation sensor (3) at (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the solar radiation sensor.
  • Connect the solar radiation sensor connector.

II - FINAL OPERATION.

  • Refit the grille.
    Distribution motor: Removal - Refitting

    Air conditioning
