Renault Koleos Service Repair Manual: Door sealing film: Removal - Refitting

Note: When removing the sealing film, the mastic must remain on the sealing film. Any damage to the mastic requires the sealing film to be replaced.

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening elements trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

  • (REAR SIDE DOOR)

Opening element sealing

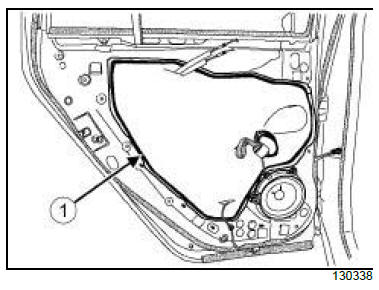

  • Carefully peel off the sealing film (1) .

REFITTING

I - REFITTING PREPARATION OPERATION

Note: Remove any adhesive residue from the door box section.

Clean the door box section with heptane using a dry, lint-free cloth.

The door must be clean (free of dust, grease, anti-adhesive products), with no trace of impurities and no condensation.

II - REFITTING OPERATION FOR PART CONCERNED

Opening element sealing

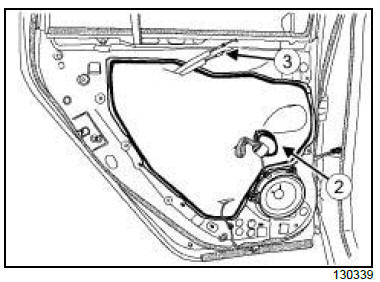

  • Refit:
    • the internal door opening control cable (3) ,
    • the speaker cable (2) .
  • Attach the sealing film around its entire edge.

III - FINAL OPERATION.

  • Refit the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening elements trim).
