Air conditioning

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).
  • Drain the refrigerant circuit using the refrigerant charging station (see 62A, Air conditioning, Coolant circuit Draining - Refilling, page 62A-11) .

II - OPERATION FOR REMOVAL OF PART CONCERNED

Air conditioning

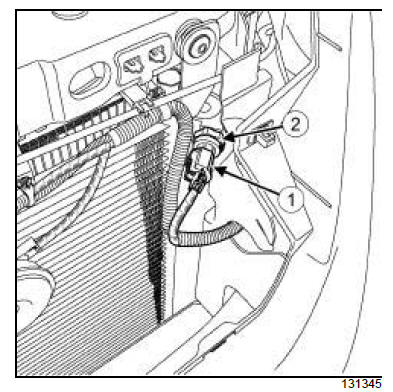

  • Disconnect the connector (1) .
  • Remove the pressure sensor (2) .

REFITTING

I - REFITTING PREPARATION OPERATION

Air conditioning

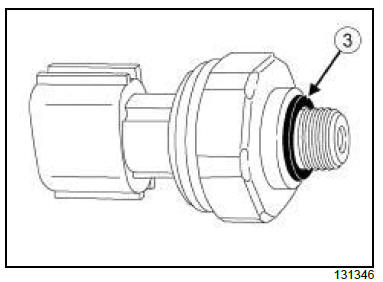

  • Always replace the seal (3) .

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the pressure sensor.

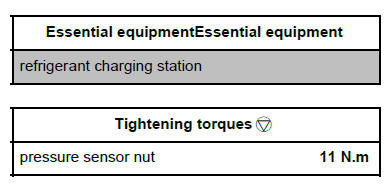

  • Torque tighten the pressure sensor nut (11 N.m).
  • Connect the connector (1) .

III - FINAL OPERATION.

  • Refit the front bumper (see Front bumper: Removal - Refitting) (55A, Exterior protection).
  • Fill the refrigerant circuit using the refrigerant charging station (see 62A, Air conditioning, Coolant circuit Draining - Refilling, page 62A-11) .
  • Set the control of the passenger compartment blower unit to the maximum speed.
  • Check that the air conditioning system is operating correctly (see 62A, Air conditioning, Air conditioning: Check, page 62A-6) .
  • Check for leaks (see 62A, Air conditioning, Coolant circuit check, page 62A-9) .
