Renault Koleos Service Repair Manual: Rear badges: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Exterior equipment

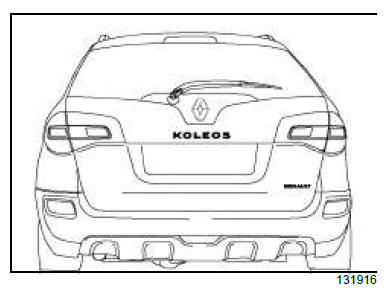

  • Unclip the vehicle badge.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

Exterior equipment

  • Remove the protective paper from the back of the vehicle badge.

1 - "KOLEOS" badge

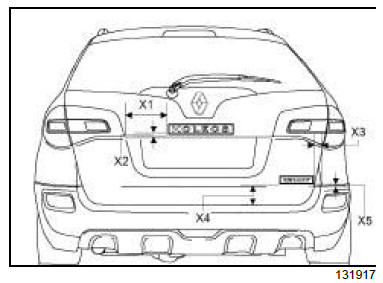

  • Position the template - badge assembly:
    • (X1) : 200 mm,
    • (X2) : 15.5 mm.
  • Stick on the vehicle badge.
  • Remove the template.

2 - "RENAULT" badge

  • Position the template - badge assembly:
    • (X3) : 67.5 mm,
    • (X4) : 98 mm,
    • (X5) : 9 mm.
  • Stick on the vehicle badge.
  • Remove the template.

Sill panel extension: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Exterior equipment

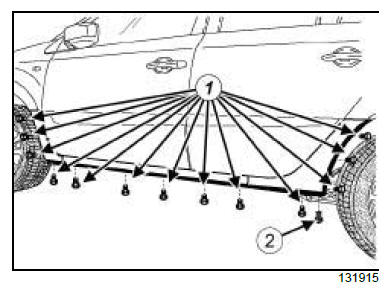

  • Remove:
    • the bolts (1) ,
    • the clip (2) ,
    • the sill panel extender.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Check the condition of the mountings and replace them if necessary.

II - OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the sill panel extender,
    • the clip (2) ,
    • the bolts (1) .
    Scuttle panel half-grille: Removal - Refitting

    Roof bar: Removal - Refitting
