REMOVAL

I - REMOVAL PREPARATION OPERATION

Exterior equipment

  • Remove:

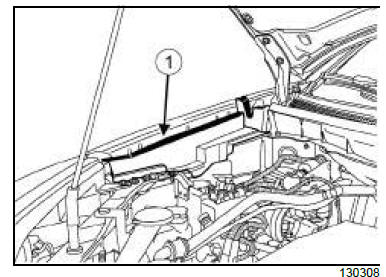

    • the seals (1) ,
    • the windscreen wiper arms (see Windscreen wiper arm: Removal - Refitting) (85A, Wiping - Washing).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Exterior equipment

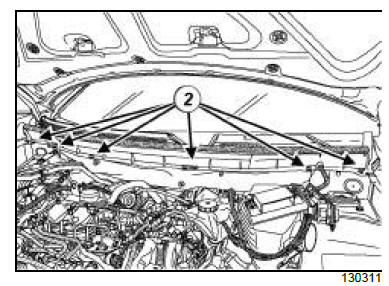

  • Remove the clips (2) .

Exterior equipment

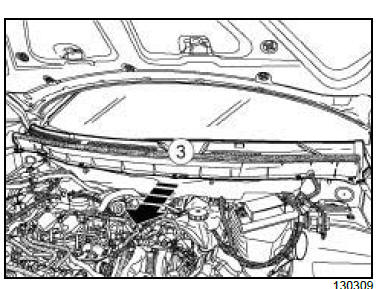

  • Remove the scuttle half-grille (3) .

Exterior equipment

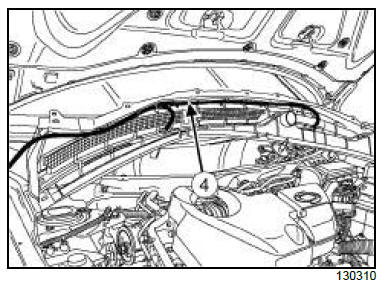

  • Remove the hose (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the pipe,
    • the scuttle half-grille,
    • the clips.

II - FINAL OPERATION.

  • Refit:
    • the windscreen wiper arms (see Windscreen wiper arm: Removal - Refitting) (85A, Wiping - Washing),
    • the seals.
