Renault Koleos Service Repair Manual: Front wheel arch liner: Removal - Refitting

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Position the vehicle on a two-post lift (see Vehicle: Towing and lifting) (02A, Lifting equipment),
  • Remove the front wheels (see Wheel: Removal - Refitting) (35A, Wheels and tyres).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Exterior protection

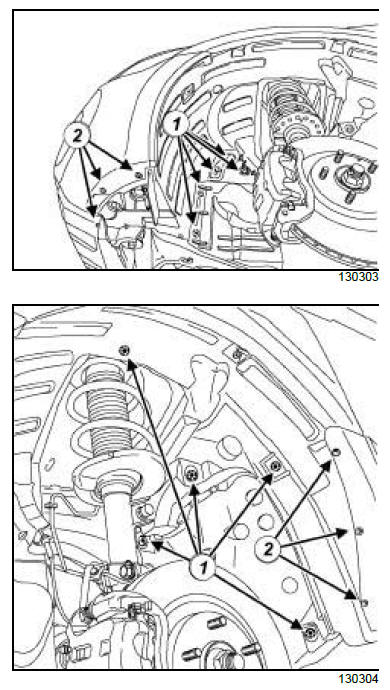

  • Remove:
    • the clips (1) ,
    • the front splash guard,
    • the bolts (2) ,
    • the wheel arch liner starting with the front section.

REFITTING

I - REFITTING PREPARATION OPERATION

  • Check the condition of the clips and replace if necessary.

II - REFITTING OPERATION FOR PART CONCERNED

  • Refit the front wheel arch liner starting with the rear section.

Exterior protection

  • Check the condition of the clips (3) and replace them if necessary.
  • Refit:
    • the front splash guard,
    • the clips (1) ,
    • the bolts (2) ,

III - FINAL OPERATION

  • Refit the front wheels (see Wheel: Removal - Refitting) (35A, Wheels and tyres)
