Electrical equipment

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the upper tailgate trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Electrical equipment

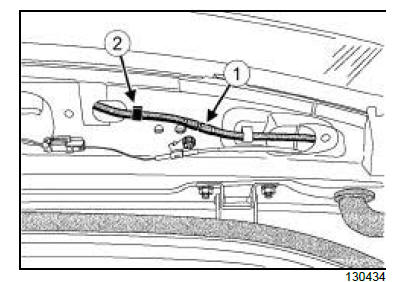

  • Disconnect:
    • the rear screen washer jet pipe at (1) ,
    • the clip (2) .

Electrical equipment

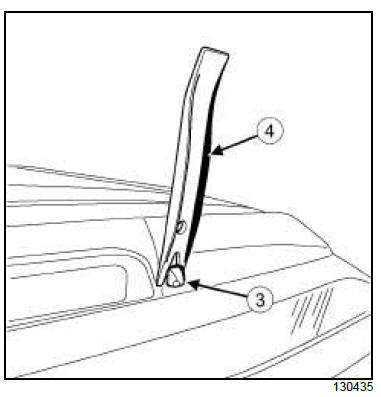

  • Remove the rear screen washer jet (3) using the tool (Car. 1363) (4) .

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear screen washer jet.
  • Connect the pipe for the rear screen washer jet.
  • Refit the clip.

II - FINAL OPERATION.

  • Refit the upper tailgate trim (see Tailgate trim: Removal - Refitting) (73A, Non-side opening elements trim).
