Renault Koleos Service Repair Manual: Rear side door check strap: Removal - Refitting

Side opening element mechanisms

REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove:
    • the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim),
    • the rear speaker (see Rear speakers: Removal - Refitting) (86A, Radio).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element mechanisms

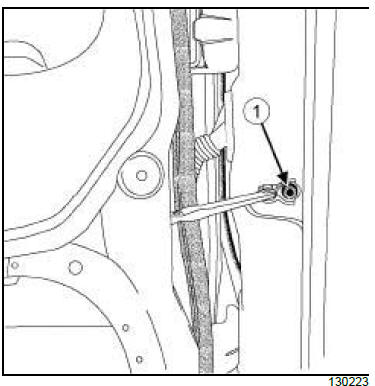

  • Remove the bolt (1) .

Side opening element mechanisms

  • Remove:

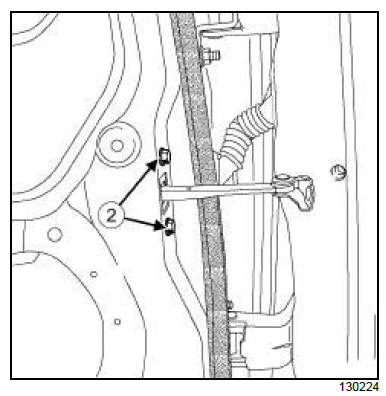

    • the bolts (2) ,
    • the rear side door tie-rod from inside the door box section.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit the rear side door tie-rod in the door box section and temporarily refit the bolts.

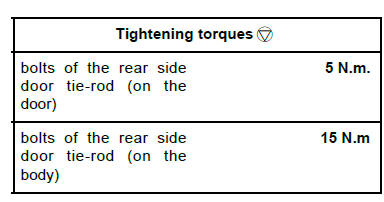

  • Torque tighten:
    • the bolts of the rear side door tie-rod (on the door) (5 N.m.),
    • the bolts of the rear side door tie-rod (on the body) (15 N.m).

II - FINAL OPERATION

  • Refit:
    • the rear speaker (see Rear speakers: Removal - Refitting) (86A, Radio),
    • the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening elements trim).
