REMOVAL

I - REMOVAL PREPARATION OPERATION

  • Remove the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).

Side opening element mechanisms

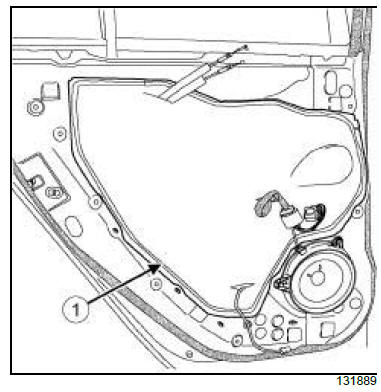

  • Remove the door sealing film (1) (see Door sealing film: Removal - Refitting) (65A, Opening element sealing).

II - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening element mechanisms

  • Position the window to access the bolts (3) .
  • Disconnect the battery (see Battery: Removal - Refitting) (80A, Battery).
  • Remove:

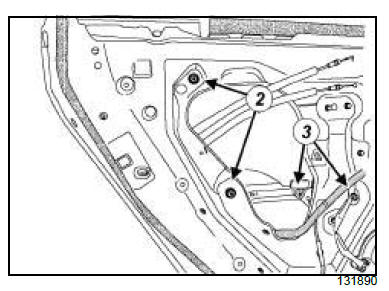

    • the bolts (2) ,
    • the bolts (3) ,
    • the rear side door window.

Side opening element mechanisms

  • Disconnect the window winder mechanism supply connector.
  • Remove:

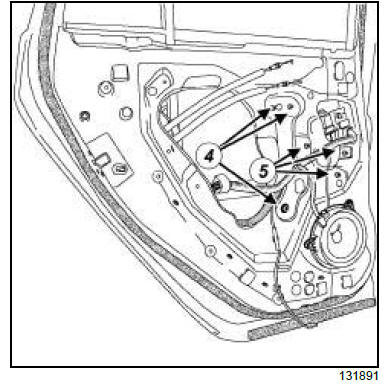

    • the bolts (4) ,
    • the bolts (5) ,
    • the window winder mechanism.

REFITTING

I - REFITTING OPERATION FOR PART CONCERNED

  • Refit:
    • the window lift mechanism,
    • the bolts (5) ,
    • the bolts (4) .
  • Connect the rear side door electric window mechanism power supply connector.
  • Refit the rear side door window.

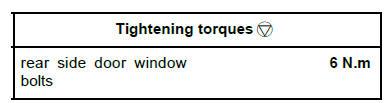

  • Torque tighten the rear side door window bolts (6 N.m) (3) .
  • Refit the bolts (2) .

II - FINAL OPERATION.

  • Refit:
    • the door sealing film (see Door sealing film: Removal - Refitting) (65A, Door sealing),
    • the rear side door trim (see Rear side door trim: Removal - Refitting) (72A, Side opening element trim).
  • Connect the battery (see Battery: Removal - Refitting) (80A, Battery).
Note: For operation in one-touch mode and/or in operational mode (opening and closing) as well as the anti-pinch function, the electronic system integrated into the engine must be correctly initialised.
  • Initialise the rear side electric window motor by raising the window to the upper limit and maintain the power supply for at least 3 seconds.
