I - REMOVAL WITHOUT HINGES

1 - REMOVAL PREPARATION OPERATION

  • Disconnect the wiring supply connectors.

2 - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening elements

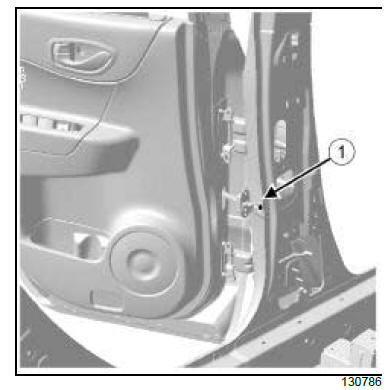

  • Remove the rear side door check strap (1) (see Rear side door check strap: Removal - Refitting) (51A, Side opening element mechanisms).

Side opening elements

  • Remove:

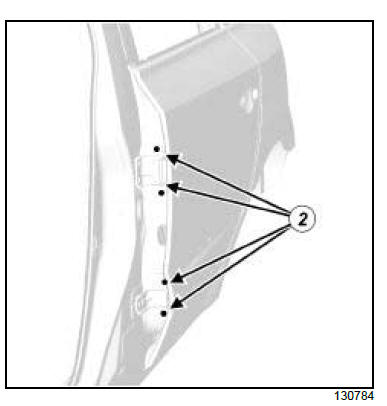

    • the rear side door nuts (2) ,
    • the rear side door.

II - REFITTING WITHOUT HINGES

1 - OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the rear side door,
    • the rear side door nuts (2) ,
    • the rear side door check strap (1) (see Rear side door check strap: Removal - Refitting) (51A, Side opening element mechanisms)
  • Adjust the door clearances and flush fitting (see Vehicle clearances: Adjustment values) (01C, Vehicle bodywork specifications).

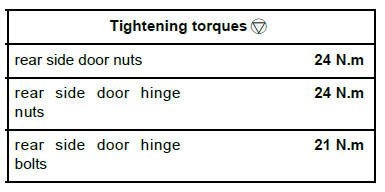

  • Torque tighten the rear side door nuts (24 N.m).

2 - FINAL OPERATION

  • Connect the wiring supply connector.

III - REMOVAL WITH HINGES

1 - REMOVAL PREPARATION OPERATION

  • Remove the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim),
  • Disconnect the wiring supply connector.

2 - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening elements

  • Remove:
    • the rear side door check strap (1) (see Rear side door check strap: Removal - Refitting) (51A, Side opening element mechanisms)

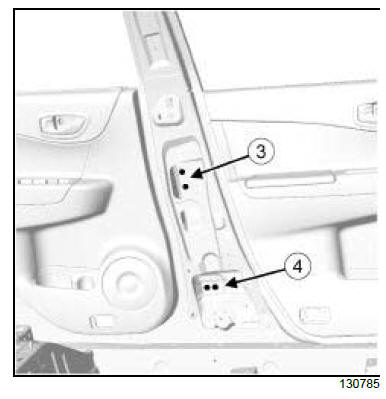

    • the rear side door hinge nuts (3) ,
    • the rear side door hinge bolts (4) ,
    • the rear side door.

IV - REFITTING WITH HINGES

1 - OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the rear side door,
    • the rear side door hinge bolts (4) ,
    • the rear side door hinge nuts (3) ,
    • the rear side door check strap (1) (see Rear side door check strap: Removal - Refitting) (51A, Side opening element mechanisms).
  • Torque tighten:
    • the rear side door hinge nuts (24 N.m) (3) ,
    • the rear side door hinge bolts (21 N.m) (4) .
  • Adjust the door clearances and shut lines (see Vehicle clearances: Adjustment values) .

2 - FINAL OPERATION

  • Connect the wiring supply connector.
  • Refit the B-pillar trim (see B-pillar trim: Removal - Refitting) (71A, Body internal trim).

Fuel filler flap cover: Removal - Refitting

REMOVAL

OPERATION FOR REMOVAL OF PART CONCERNED

Side opening elements

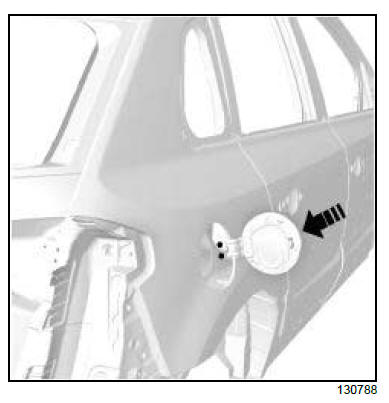

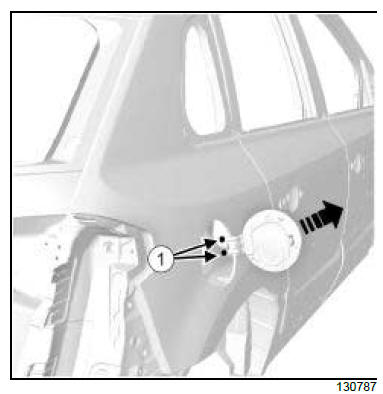

  • Remove the fuel filler flap bolts (1) .
  • Unclip the fuel filler flap.

REFITTING

REFITTING OPERATION FOR PART CONCERNED

Side opening elements

  • Clip on the fuel filler flap.
  • Refit the fuel filler flap bolts.
    Front side door: Removal - Refitting

    Non-side opening elements
