I - REMOVAL WITHOUT HINGES

1 - REMOVAL PREPARATION OPERATION

  • Disconnect the wiring supply connectors.

2 - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening elements

  • Remove:

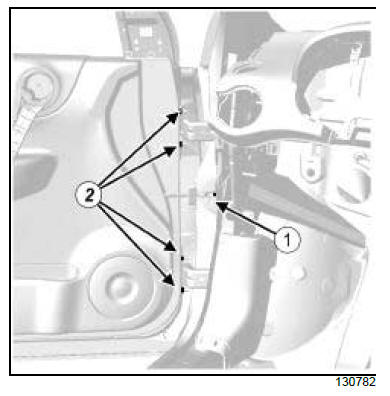

    • the front side door check strap (1) (see Rear side door check strap: Removal - Refitting) (51A, Side opening element mechanisms),
    • the front side door nuts (2) ,
    • the front side door.

II - REFITTING WITHOUT HINGES

1 - OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the front side door,
    • the front side door nuts (2) ,
    • the front side door check strap (1) (see Rear side door check strap: Removal - Refitting) (51A, Side opening element mechanisms)
  • Adjust the door clearances and flush fitting (see Vehicle clearances: Adjustment values) (01C, Vehicle bodywork specifications).
  • Torque tighten the front side door nuts (24 N.m).

2 - FINAL OPERATION

  • Connect the wiring supply connector.

III - REMOVAL WITH HINGES

1 - REMOVAL PREPARATION OPERATION

  • Remove the front wing (see 42A, Front upper structure, Front wing: Removal - Refitting, page 42A-1) .
  • Disconnect the wiring supply connector.

2 - OPERATION FOR REMOVAL OF PART CONCERNED

Side opening elements

  • Remove:
    • the front side door check strap (1) (see Rear side door check strap: Removal - Refitting) (51A, Side opening element mechanisms)

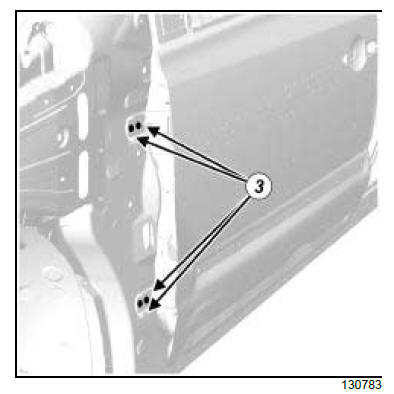

    • the front side door hinge bolts (3) ,
    • the front side door.

IV - REFITTING WITH HINGES

1 - OPERATION FOR REFITTING PART CONCERNED

  • Refit:
    • the front side door,
    • the front side door hinge bolts (3) ,
    • the front side door check strap (1) (see Rear side door check strap: Removal - Refitting) (51A, Side opening element mechanisms).
  • Adjust the door clearances and shut lines (see Vehicle clearances: Adjustment values) .

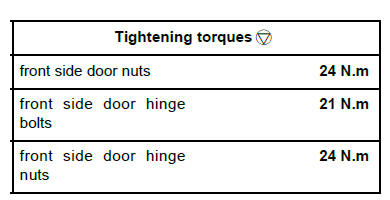

  • Torque tighten:
    • the front side door hinge bolts (21 N.m),
    • the front side door hinge nuts (24 N.m).

2 - FINAL OPERATION

  • Connect the wiring supply connector.
  • Refit the front wing (see 42A, Front upper structure, Front wing: Removal - Refitting, page 42A-1) .
