Renault Koleos Service Repair Manual: Engine mounting: General description

Renault Koleos Service Repair Manual / Panelwork / Front lower structure / Engine mounting: General description

IMPORTANT Use a repair bench to ensure the positioning of the points and the geometry of the axle assemblies.



Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading this general information, check that there are no special notes associated with this vehicle.

These special notes will be specified if applicable in other parts of this subsection dealing with the part.



Note: For a detailed description of a particular connection, see MR 400.

DESIGN OF THE STRUCTURAL COMPONENT

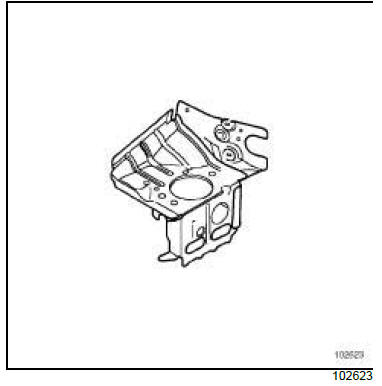

Front lower structure

This is a basic part; it only functions as an engine mounting.

Engine mounting: Description

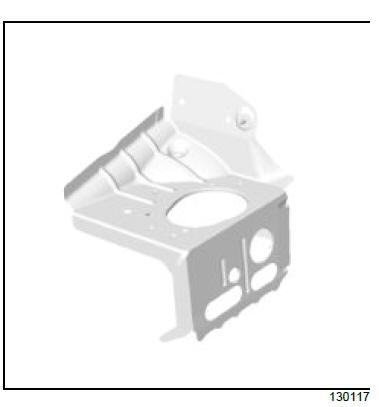

Front lower structure

There is only one way of replacing this part:

  • Complete replacement: this operation complements the replacement of the scuttle panel for a frontal impact and the partial replacement of the front side member and front wheel arch for a right-hand side impact.
IMPORTANT Use a repair bench to ensure the positioning of the points and the geometry of the axle assemblies.

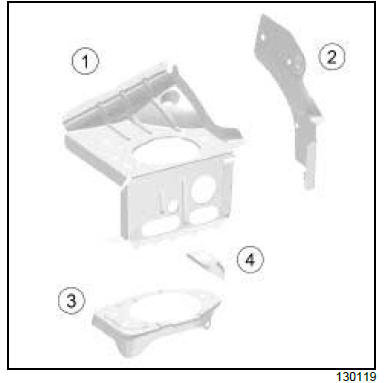

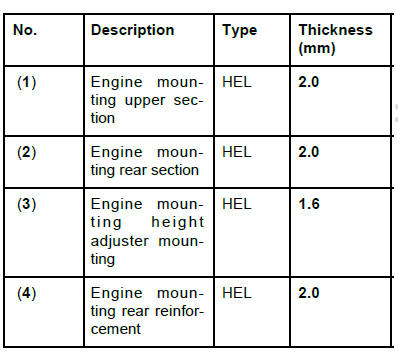

I - COMPOSITION OF THE SPARE PART

Engine mounting, low torque

Front lower structure

Front lower structure

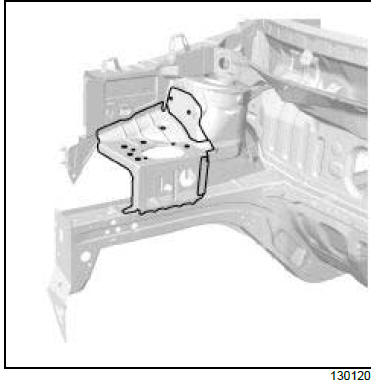

II - PART FITTED

Engine mounting, low torque

Front lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).

III - POSITIONING OF LOCAL ELECTRICAL EARTHS

For the earth stud fitting procedure (see Earths on the body: List and location of components)

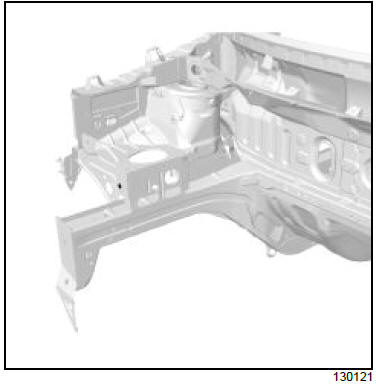

Position of the earth stud

Front lower structure

    Sub-frame rear mounting: General description

    Front half unit: General description
