IMPORTANT Use a repair bench to ensure the positioning of the points and the geometry of the axle assemblies.



Note: The information contained in the following describes the general repair procedure for all vehicles having the same design for this part.

Before reading this general information, check that there are no special notes associated with this vehicle.

These special notes will be specified if applicable in other parts of this subsection dealing with the part.



Note: For a detailed description of a particular connection, see MR 400.

DESIGN OF THE STRUCTURAL COMPONENT

Front lower structure

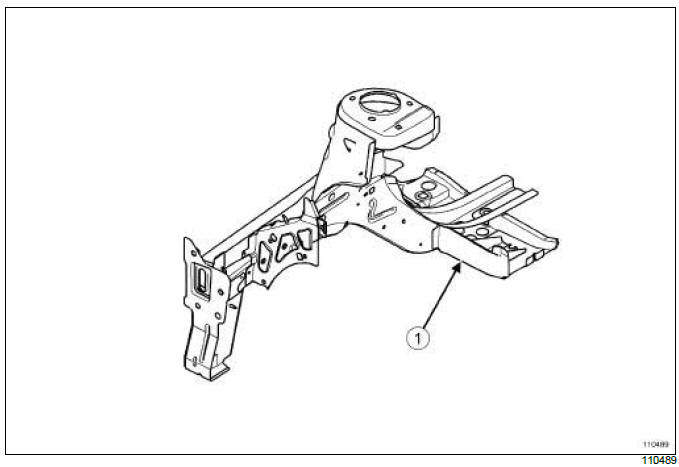

The front sub-frame rear mounting (1) is welded to the front half unit.

Sub-frame rear mounting: Description

Front lower structure

There is only one way of replacing this part:

  • complete replacement.

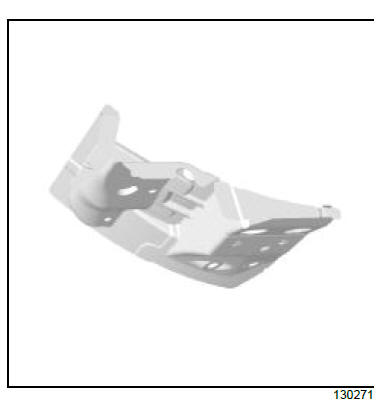

I - COMPOSITION OF THE SPARE PART

Front lower structure

Front lower structure

II - PART FITTED

Complete replacement

Front lower structure

WARNING If the mating faces of the parts to be welded are not accessible, make EGW plug welds to replace the original resistance welds (see MR 400).
