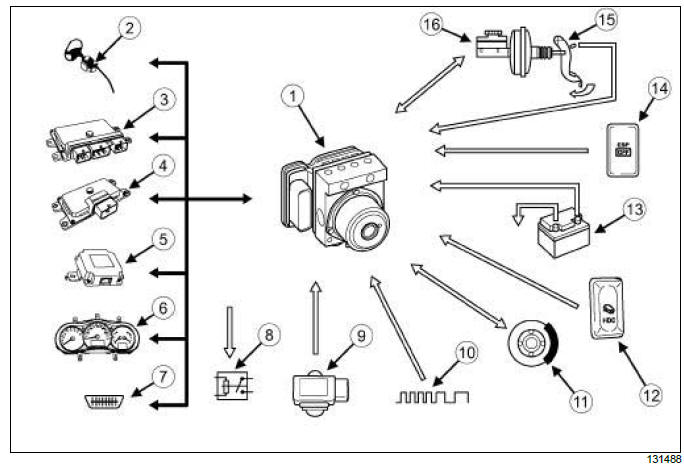

ELECTRONIC STABILITY PROGRAM 2 or ELECTRONIC STABILITY PROGRAM

Anti-lock braking system

  1. Hydraulic unit
  2. Steering wheel angle sensor
  3. Injection computer
  4. Automatic transmission computer (depending on version)
  5. 4WS control unit (4WS vehicle only)
  6. ESP warning light on the instrument panel
  7. Diagnostic socket
  8. Brake light switch
  9. Lateral acceleration and yaw speed sensor
  10. Vehicle speed
  11. Wheel speed sensor
  12. HDC switch (4WS vehicle only)
  13. Battery
  14. ESP inhibitor switch
  15. Brake lights switch
  16. Master cylinder

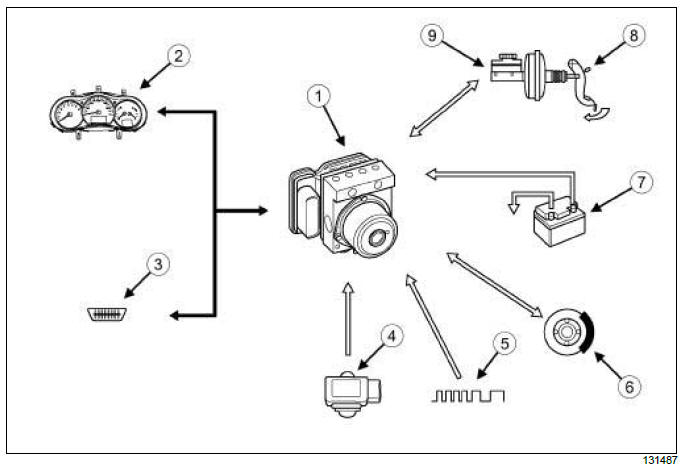

WITHOUT ESP

Anti-lock braking system

  1. Hydraulic unit
  2. ABS warning light on the instrument panel
  3. Diagnostic socket
  4. Lateral acceleration sensor (4WS vehicle only)
  5. Vehicle speed
  6. Wheel speed sensor
  7. Battery
  8. Brake light switch
  9. Master cylinder
